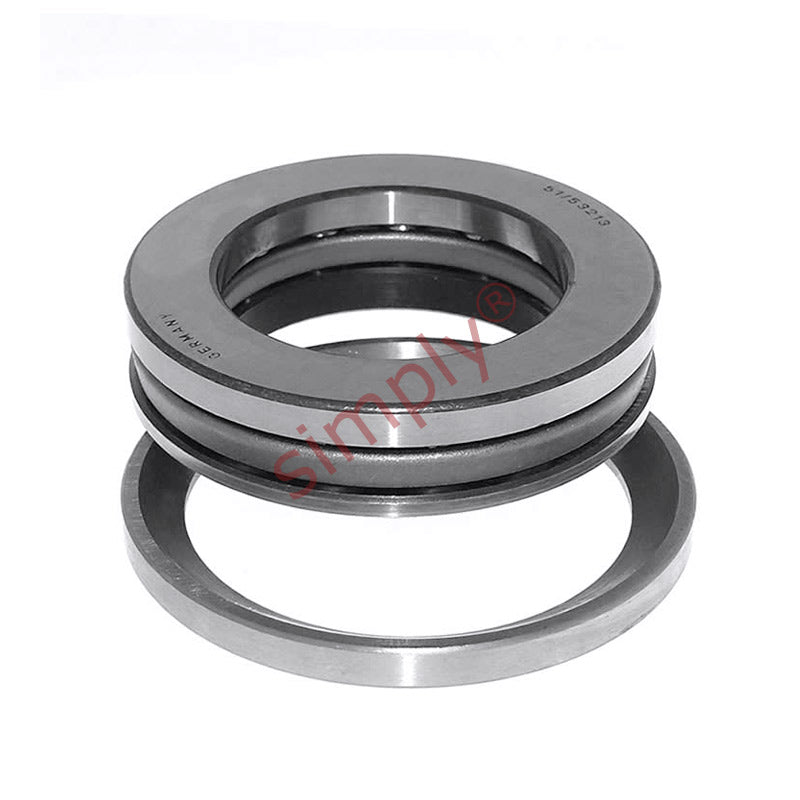

SKF 53309 Single Thrust Ball Bearing with Spherical Housing Seat U309 45x85x33mm
SKF 53309 Single Thrust Ball Bearing with Spherical Housing Seat U309 45x85x33mm
Regular price
Rs. 18,796.97
ex VAT
Regular price
Sale price
Rs. 18,796.97
ex VAT
In stock
Price Break
10+
Rs. 16,729.30
19+
Rs. 15,789.45
29+
Rs. 15,601.49
39+
Rs. 15,413.52
49+
Rs. 15,225.55
74+
Rs. 15,037.58
99+
Rs. 14,097.73
199+
Rs. 13,909.76
249+
Rs. 13,721.79
499+
Rs. 13,533.82
999+
Rs. 13,157.88
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. (shown but available separately). Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 33mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| H1 | 33mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 153 kN |
| Fatigue load limit Pu | 5.6 kN |
| Minimum load factor A | 0.12 |
| Reference speed | 2800 rpm |
| Limiting speed | 4000 rpm |
| Weight | 0.83 kg |
| Seating washer | U309 |
| d1 | 85mm |
| D1 | 47mm |
| D2 | 65mm |
| D3 | 90mm |
| H | 30.13mm |
| C | 10mm |
| R | 64mm |
| s | 25mm |
| r1r2 min | 1mm |
| da max | 69mm |
| Da max | 65mm |
| ra max | 1mm |
