SKU: 53220?EU

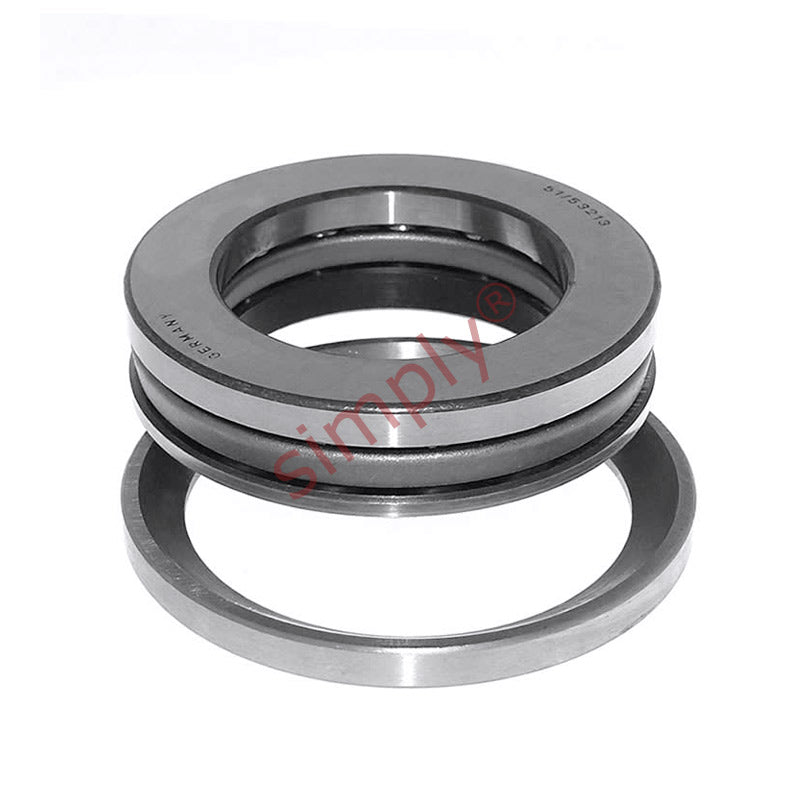

53220 Budget Single Thrust Ball Bearing with Spherical Housing Seat U220 100x150x45mm
53220 Budget Single Thrust Ball Bearing with Spherical Housing Seat U220 100x150x45mm
Regular price
Rs. 21,149.98
Regular price
Sale price
Rs. 21,149.98
Taxes included.
In stock
Price Break
10+
Rs. 18,823.48
19+
Rs. 17,765.98
29+
Rs. 17,554.48
39+
Rs. 17,342.98
49+
Rs. 17,131.48
74+
Rs. 16,919.98
99+
Rs. 15,862.49
199+
Rs. 15,650.99
249+
Rs. 15,439.49
499+
Rs. 15,227.99
999+
Rs. 14,804.99
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 150mm
- Width:
- 45mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 150mm |
| H1 | 45mm |
| Dynamic load C | 124 kN |
| Static load Co | 345 kN |
| Fatigue load limit Pu | 11.4 kN |
| Minimum load factor A | 0.62 |
| Reference speed | 1800 rpm |
| Limiting Speed | 2400 rpm |
| Weight | 2.7 kg |
| Seating Washer | U220 |
| d1 | 150mm |
| D1 | 103mm |
| D2 | 125mm |
| D3 | 155mm |
| H | 40.9mm |
| C | 14mm |
| R | 112mm |
| s | 52mm |
| r1r2 min | 1.1mm |
| da max | 130mm |
| Da max | 125mm |
| ra max | 1mm |
