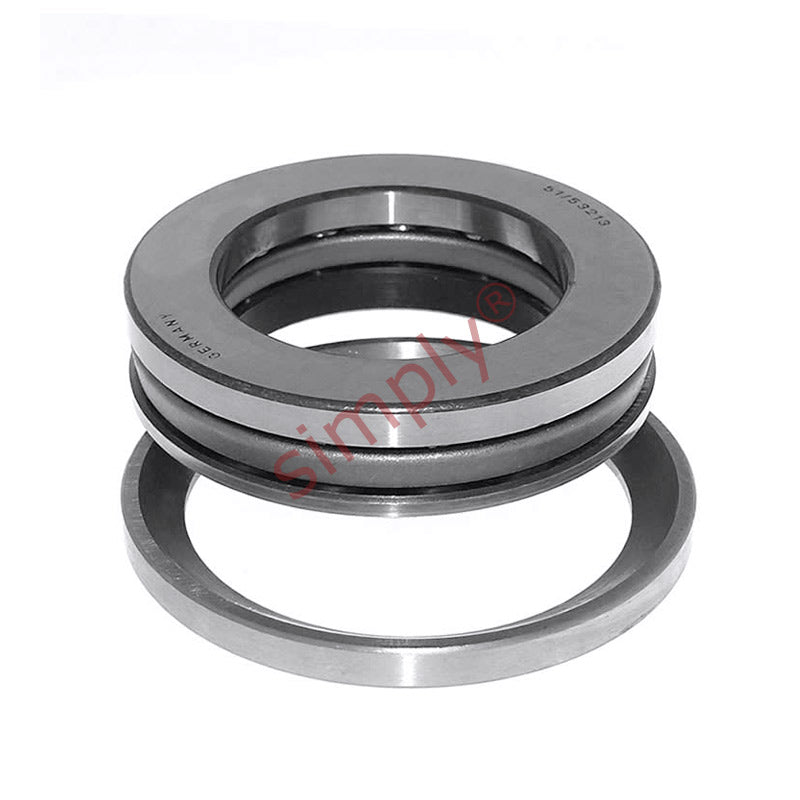

53212 Budget Single Thrust Ball Bearing with Spherical Housing Seat U212 60x95x31mm
53212 Budget Single Thrust Ball Bearing with Spherical Housing Seat U212 60x95x31mm
Regular price
Rs. 7,389.24
Regular price
Sale price
Rs. 7,389.24
Taxes included.
In stock
Price Break
10+
Rs. 6,576.42
19+
Rs. 6,206.96
29+
Rs. 6,133.07
39+
Rs. 6,059.18
49+
Rs. 5,985.28
74+
Rs. 5,911.39
99+
Rs. 5,541.93
199+
Rs. 5,468.04
249+
Rs. 5,394.15
499+
Rs. 5,320.25
999+
Rs. 5,172.47
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 95mm
- Width:
- 31mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 95mm |
| H1 | 31mm |
| Dynamic load C | 62.4 kN |
| Static load Co | 150 kN |
| Fatigue load limit Pu | 5.6 kN |
| Minimum load factor A | 0.12 |
| Reference speed | 2800 rpm |
| Limiting Speed | 3800 rpm |
| Weight | 0.82 kg |
| Seating Washer | U212 |
| d1 | 95mm |
| D1 | 62mm |
| D2 | 78mm |
| D3 | 100mm |
| H | 28.02mm |
| C | 9mm |
| R | 72mm |
| s | 32.5mm |
| r1r2 min | 1mm |
| da max | 81mm |
| Da max | 78mm |
| ra max | 1mm |
