SKU: 53206+U206-EU
53206 Budget Single Thrust Ball Bearing with Spherical Housing Seat U206 30x52x20mm
53206 Budget Single Thrust Ball Bearing with Spherical Housing Seat U206 30x52x20mm
Regular price
Rs. 3,109.58
Regular price
Sale price
Rs. 3,109.58
Taxes included.
Low stock
Description
Description
|
Thrust Ball Thrust Bearings Spherical Seat Type: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. The lower washer has a spherical face to be used with a spherical housing washer. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 20mm

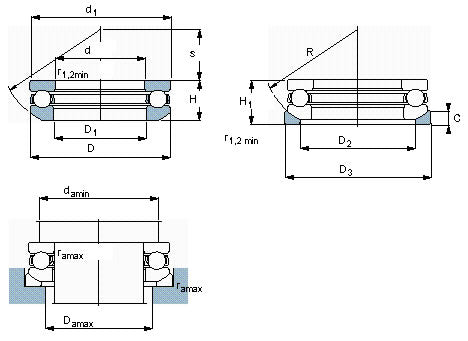

Technical
Technical
| d | 30mm |
|---|---|
| D | 52mm |
| H1 | 20mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 51 kN |
| Fatigue load limit Pu | 1.9 kN |
| Minimum load factor A | 0.013 |
| Reference speed | 4800 rpm |
| Limiting Speed | 6700 rpm |
| Weight | 0.18 kg |
| Seating Washer | U206 |
| d1 | 52mm |
| D1 | 32mm |
| D2 | 42mm |
| D3 | 55mm |
| H | 17.8mm |
| C | 5.5mm |
| R | 45mm |
| s | 22mm |
| r1r2 min | 0.6mm |
| da max | 43mm |
| Da max | 42mm |
| ra max | 0.6mm |
