SKU: 53206-EU

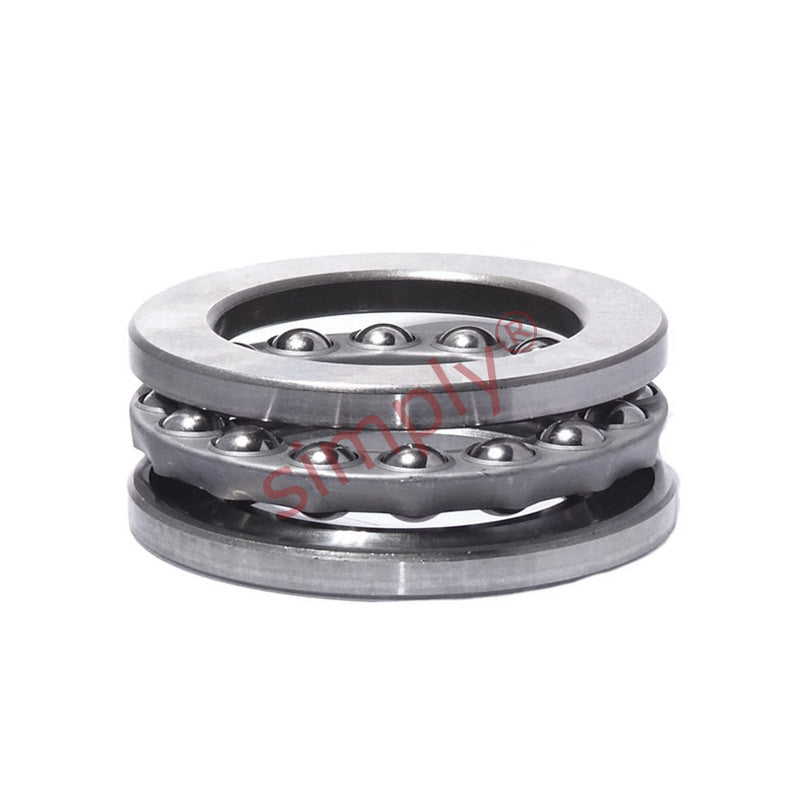

53206 Budget Single Thrust Ball Bearing 30x52x20mm
53206 Budget Single Thrust Ball Bearing 30x52x20mm
Regular price
Rs. 1,152.17
Regular price
Sale price
Rs. 1,152.17
Taxes included.
In stock
Price Break
10+
Rs. 1,025.43
19+
Rs. 967.82
29+
Rs. 956.30
39+
Rs. 944.78
49+
Rs. 933.26
74+
Rs. 921.74
99+
Rs. 864.13
199+
Rs. 852.61
249+
Rs. 841.08
499+
Rs. 829.56
999+
Rs. 806.52
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 52mm
- Width:
- 20mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 52mm |
| H1 | 20mm |
| Dynamic load C | 25.5 kN |
| Static load Co | 51 kN |
| Fatigue load limit Pu | 1.9 kN |
| Minimum load factor A | 0.013 |
| Reference speed | 4800 rpm |
| Limiting Speed | 6700 rpm |
| Weight | 0.18 kg |
