SKU: 51413M-SKF

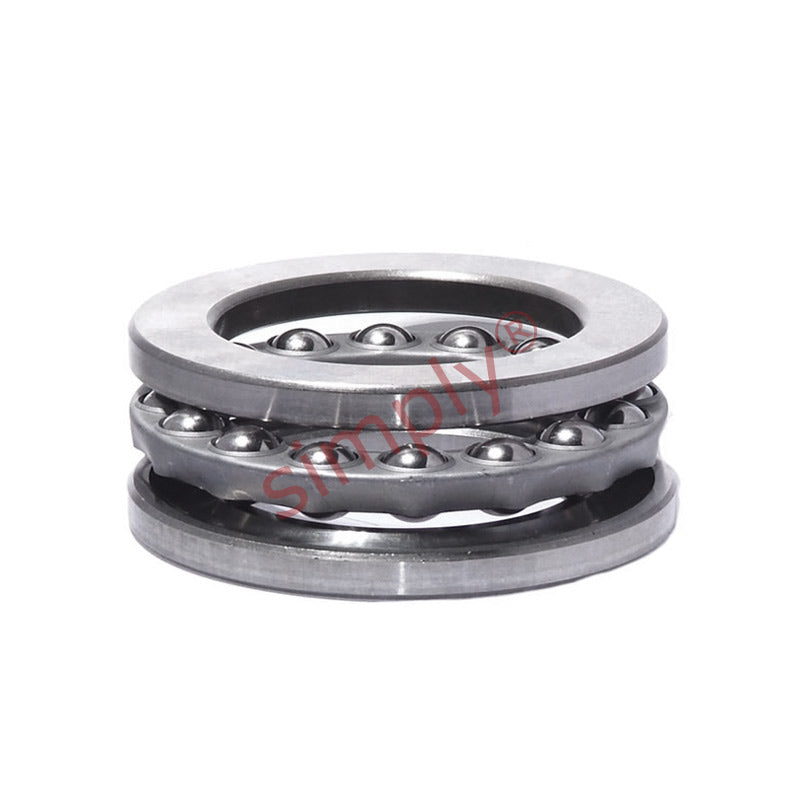

SKF 51413M Single Thrust Ball Bearing 65x140x56mm
SKF 51413M Single Thrust Ball Bearing 65x140x56mm
Regular price
Rs. 63,086.37
Regular price
Sale price
Rs. 63,086.37
Taxes included.
In stock
Price Break
10+
Rs. 56,146.87
19+
Rs. 52,992.55
29+
Rs. 52,361.69
39+
Rs. 51,730.82
49+
Rs. 51,099.96
74+
Rs. 50,469.10
99+
Rs. 47,314.78
199+
Rs. 46,683.91
249+
Rs. 46,053.05
499+
Rs. 45,422.19
999+
Rs. 44,160.46
Share this product
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Outside Diameter:
- 140mm
- Width:
- 56mm
Technical
Technical
| d | 65mm |
|---|---|
| D | 140mm |
| H | 56mm |
| Dynamic load C | 216 kN |
| Static load Co | 490 kN |
| Fatigue load limit Pu | 18 kN |
| Minimum load factor A | 1.2 |
| Reference speed | 1500 rpm |
| Limiting speed | 2200 rpm |
| Weight | 4 kg |
| d1 | 140mm |
| D1 | 68mm |
| r1r2 min | 2mm |
| da min | 110mm |
| Da max | 95mm |
| ra max | 2mm |
