SKU: 51409-EU

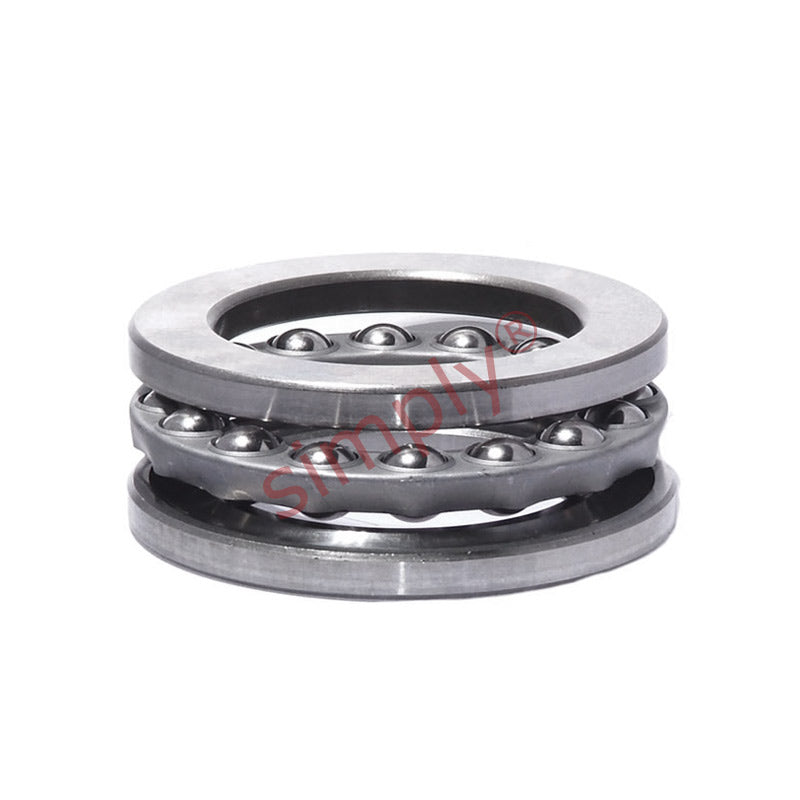

51409 Budget Single Thrust Ball Bearing 45x100x39mm
51409 Budget Single Thrust Ball Bearing 45x100x39mm
Regular price
Rs. 6,571.20
Regular price
Sale price
Rs. 6,571.20
Taxes included.
In stock
Price Break
10+
Rs. 5,848.37
19+
Rs. 5,519.81
29+
Rs. 5,454.10
39+
Rs. 5,388.38
49+
Rs. 5,322.67
74+
Rs. 5,256.96
99+
Rs. 4,928.40
199+
Rs. 4,862.69
249+
Rs. 4,796.98
499+
Rs. 4,731.26
999+
Rs. 4,599.84
Share this product
Description
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have angular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 39mm
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| H | 39mm |
| Dynamic load C | 130 kN |
| Static load Co | 265 kN |
| Fatigue load limit Pu | 9.8 kN |
| Minimum load factor A | 0.37 |
| Reference speed | 2200 rpm |
| Limiting speed | 3000 rpm |
| Weight | 1.4 kg |
| d1 | 100mm |
| D1 | 47mm |
| r1r2 min | 1.1mm |
| da min | 78mm |
| Da max | 67mm |
| ra max | 1mm |
