• 51312 Thrust Ball Bearing 60x110x35mm
1 1

SKU: 51312.MB

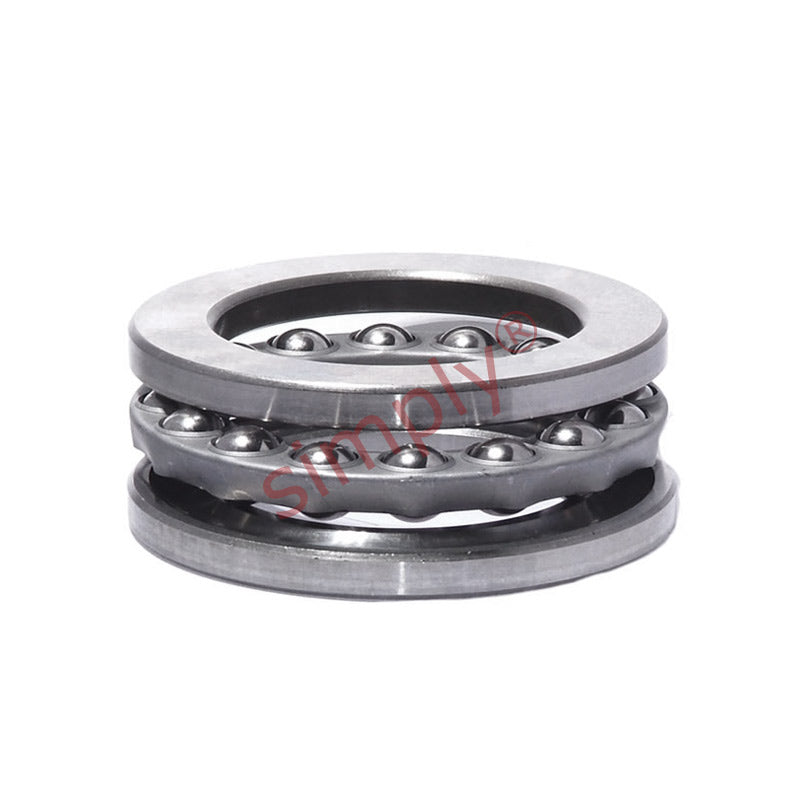

51312 Thrust Ball Bearing 60x110x35mm

51312 Thrust Ball Bearing 60x110x35mm
Rs. 10,159.57
Rs. 10,159.57
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 9,042.02
19+ Rs. 8,534.04
29+ Rs. 8,432.44
39+ Rs. 8,330.85
49+ Rs. 8,229.25
74+ Rs. 8,127.66
99+ Rs. 7,619.68
199+ Rs. 7,518.08
249+ Rs. 7,416.49
499+ Rs. 7,314.89
999+ Rs. 7,111.70
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
60mm
Outside Diameter:
110mm
Width:
35mm
Technical
d 60mm
D 110mm
H 35mm
Dynamic load C 101 kN
Static load Co 224 kN
Fatigue load limit Pu 8.3 kN
Minimum load factor A 0.26
Reference speed 2200 rpm
Limiting speed 3000 rpm
Weight 1.35 kg
d1 110mm
D1 62mm
r1r2 min 1.1mm
da min 90mm
Da max 80mm
ra max 1mm
