• 51307 Thrust Ball Bearing 35x68x24mm
1 1

SKU: 51307.MB

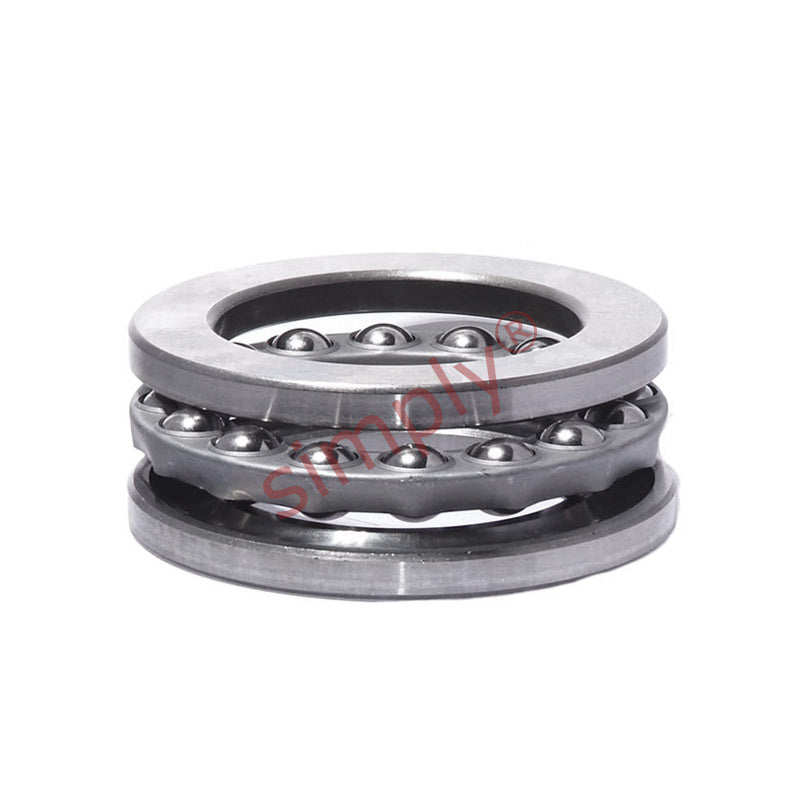

51307 Thrust Ball Bearing 35x68x24mm

51307 Thrust Ball Bearing 35x68x24mm
Rs. 2,513.01
Rs. 2,513.01
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 2,236.58
19+ Rs. 2,110.93
29+ Rs. 2,085.80
39+ Rs. 2,060.67
49+ Rs. 2,035.54
74+ Rs. 2,010.41
99+ Rs. 1,884.76
199+ Rs. 1,859.63
249+ Rs. 1,834.50
499+ Rs. 1,809.37
999+ Rs. 1,759.11
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
35mm
Outside Diameter:
68mm
Width:
24mm
Technical
d 35mm
D 68mm
H 24mm
Dynamic load C 49.4 kN
Static load Co 96.5 kN
Fatigue load limit Pu 3.55 kN
Minimum load factor A 0.048
Reference speed 3200 rpm
Limiting speed 4500 rpm
Weight 0.39 kg
d1 68mm
D1 37mm
r1r2 min 1mm
da min 55mm
Da max 48mm
ra max 1mm
