SKU: 51217-CDX

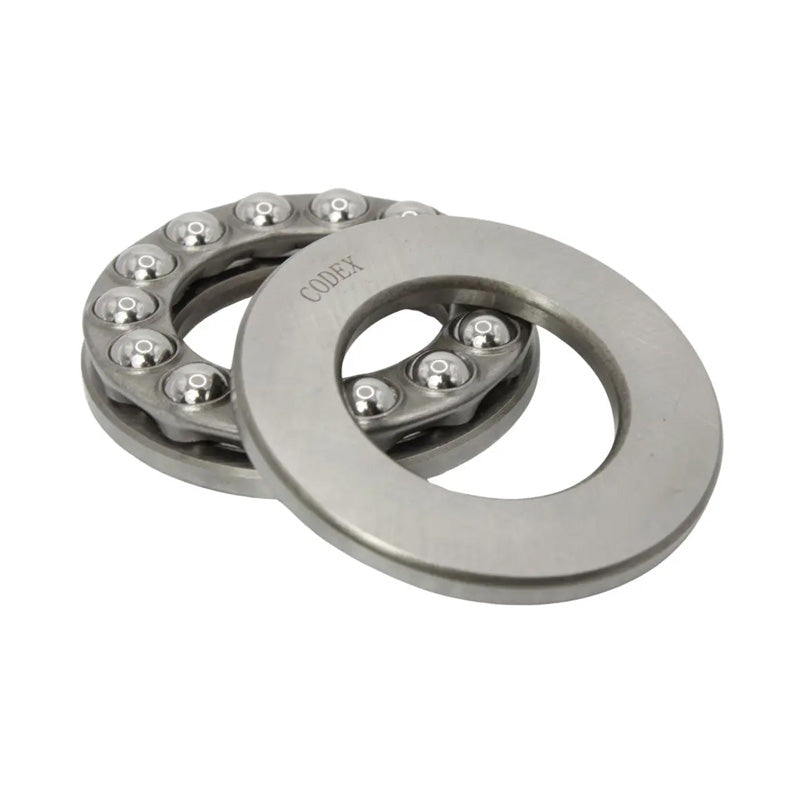

Codex 51217 Single Thrust Ball Bearing 85x125x31mm
Codex 51217 Single Thrust Ball Bearing 85x125x31mm
Regular price
Rs. 10,155.73
Regular price
Sale price
Rs. 10,155.73
Taxes included.
In stock
Price Break
10+
Rs. 9,038.60
19+
Rs. 8,530.81
29+
Rs. 8,429.26
39+
Rs. 8,327.70
49+
Rs. 8,226.14
74+
Rs. 8,124.58
99+
Rs. 7,616.80
199+
Rs. 7,515.24
249+
Rs. 7,413.68
499+
Rs. 7,312.13
999+
Rs. 7,109.01
Share this product
Description
Description
Codex Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
- Brand / Quality:
- Codex - Good Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 31mm
Technical
Technical
| d | 85 |
|---|---|
| D | 125 |
| H | 31 |
| Dynamic Load | 97.5 kN |
| Static Load | 275 kN |
| Pu | 9.8 |
| A | 0.39 |
| Ref Speed | 2200 rpm |
| Limiting Speed | 3000 rpm |
| kg | 1.2 |
| d1 | 125 |
| D1 | 88 |
| r1r2 min | 1 |
| da min | 109 |
| Da max | 101 |
| ra max | 1 |
