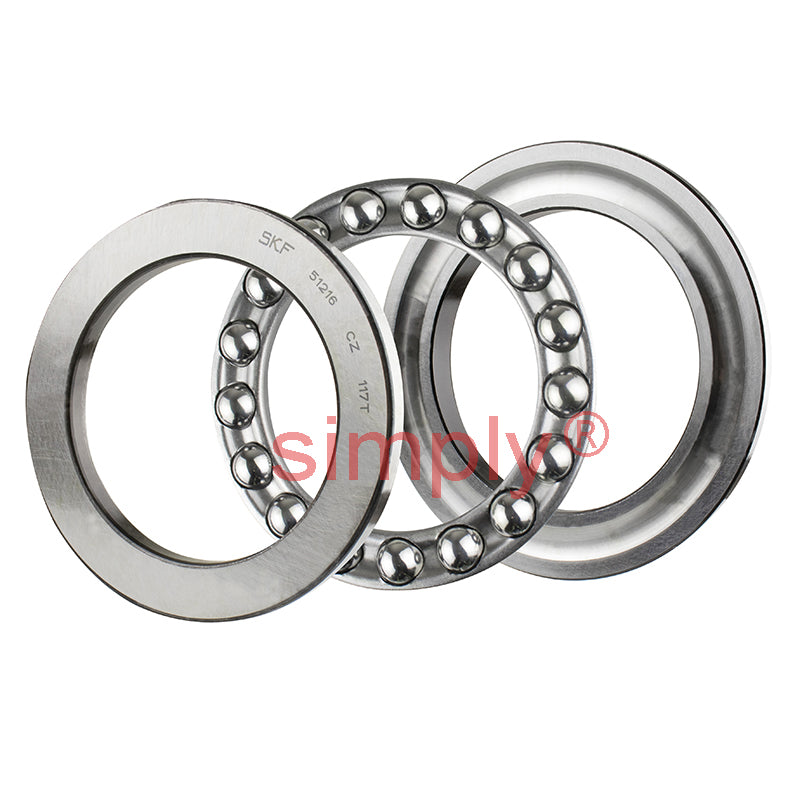

SKF 51216 Single Thrust Ball Bearing 80x115x28mm
SKF 51216 Single Thrust Ball Bearing 80x115x28mm
Regular price
Rs. 12,049.66
ex VAT
Regular price
Sale price
Rs. 12,049.66
ex VAT
In stock
Price Break
10+
Rs. 10,724.20
19+
Rs. 10,121.71
29+
Rs. 10,001.22
39+
Rs. 9,880.72
49+
Rs. 9,760.22
74+
Rs. 9,639.73
99+
Rs. 9,037.25
199+
Rs. 8,916.75
249+
Rs. 8,796.25
499+
Rs. 8,675.76
999+
Rs. 8,434.76
Couldn't load pickup availability
Description
Description
|
SKF Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 115mm
- Width:
- 28mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 115mm |
| H | 28mm |
| Dynamic load C | 76.1 kN |
| Static load Co | 208 kN |
| Fatigue load limit Pu | 7.65 kN |
| Minimum load factor A | 0.22 |
| Reference speed | 2400 rpm |
| Limiting speed | 3400 rpm |
| Weight | 0.91 kg |
| d1 | 115mm |
| D1 | 82mm |
| r1r2 min | 1mm |
| da min | 101mm |
| Da max | 94mm |
| ra max | 1mm |
