• 51113 Thrust Ball Bearing 65x90x18mm
1 1

SKU: 51113.MB

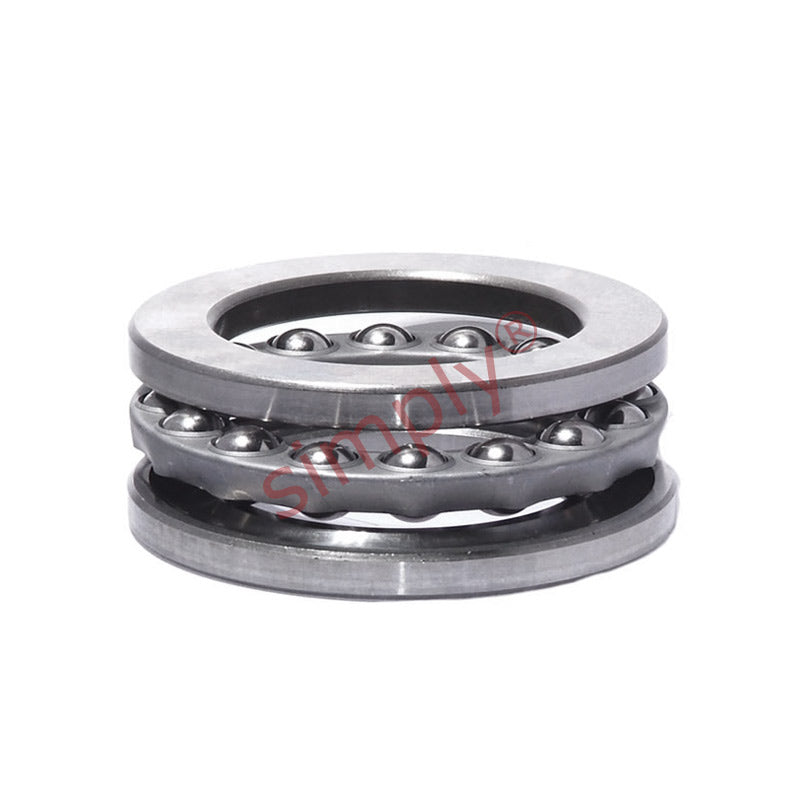

51113 Thrust Ball Bearing 65x90x18mm

51113 Thrust Ball Bearing 65x90x18mm
Rs. 3,533.32
Rs. 3,533.32
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 3,144.65
19+ Rs. 2,967.99
29+ Rs. 2,932.66
39+ Rs. 2,897.32
49+ Rs. 2,861.99
74+ Rs. 2,826.66
99+ Rs. 2,649.99
199+ Rs. 2,614.66
249+ Rs. 2,579.32
499+ Rs. 2,543.99
999+ Rs. 2,473.32
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
65mm
Outside Diameter:
90mm
Width:
18mm
Technical
d 65mm
D 90mm
H 18mm
Dynamic load C 37.7 kN
Static load Co 108 kN
Fatigue load limit Pu 4 kN
Minimum load factor A 0.06
Reference speed 3400 rpm
Limiting speed 4800 rpm
Weight 0.33 kg
d1 90mm
D1 67mm
r1r2 min 1mm
da min 80mm
Da max 75mm
ra max 1mm
