SKU: 51112.MB

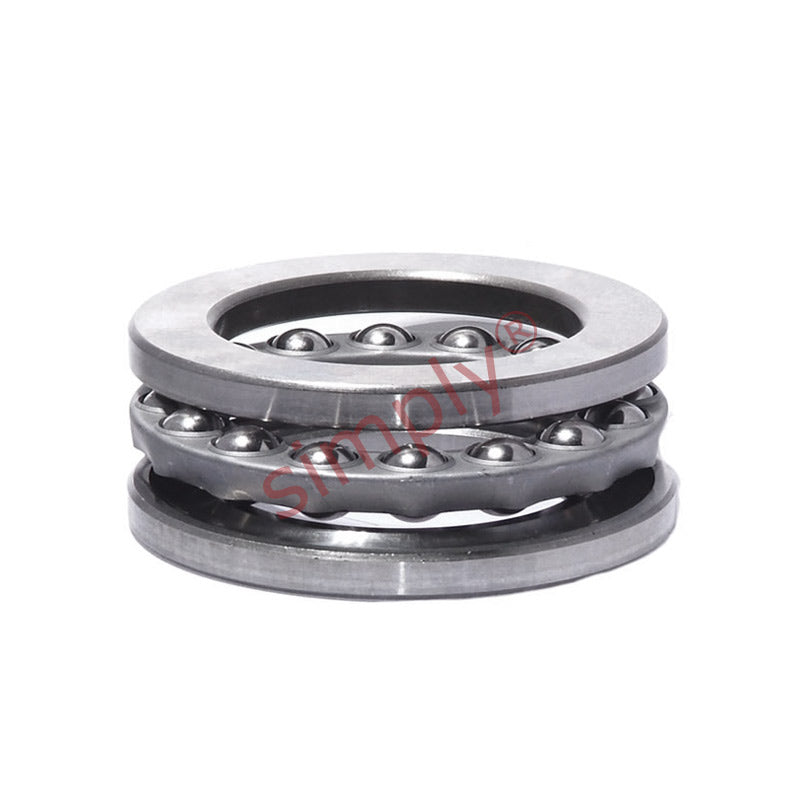

51112 Thrust Ball Bearing 60x85x17mm
51112 Thrust Ball Bearing 60x85x17mm
Regular price
Rs. 3,234.35
ex VAT
Regular price
Sale price
Rs. 3,234.35
ex VAT
In stock
Price Break
10+
Rs. 2,878.57
19+
Rs. 2,716.85
29+
Rs. 2,684.51
39+
Rs. 2,652.17
49+
Rs. 2,619.82
74+
Rs. 2,587.48
99+
Rs. 2,425.76
199+
Rs. 2,393.42
249+
Rs. 2,361.08
499+
Rs. 2,328.73
999+
Rs. 2,264.05
Couldn't load pickup availability
Description
Description
|
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment. Benefits: Axial loading, ease of mounting and assembly |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 17mm
Technical
Technical
| d | 60mm |
|---|---|
| D | 85mm |
| H | 17mm |
| Dynamic load C | 41.6 kN |
| Static load Co | 122 kN |
| Fatigue load limit Pu | 4.55 kN |
| Minimum load factor A | 0.077 |
| Reference speed | 3600 rpm |
| Limiting speed | 5000 rpm |
| Weight | 0.2 kg |
| d1 | 85mm |
| D1 | 62mm |
| r1r2 min | 1mm |
| da min | 75mm |
| Da max | 70mm |
| ra max | 1mm |
