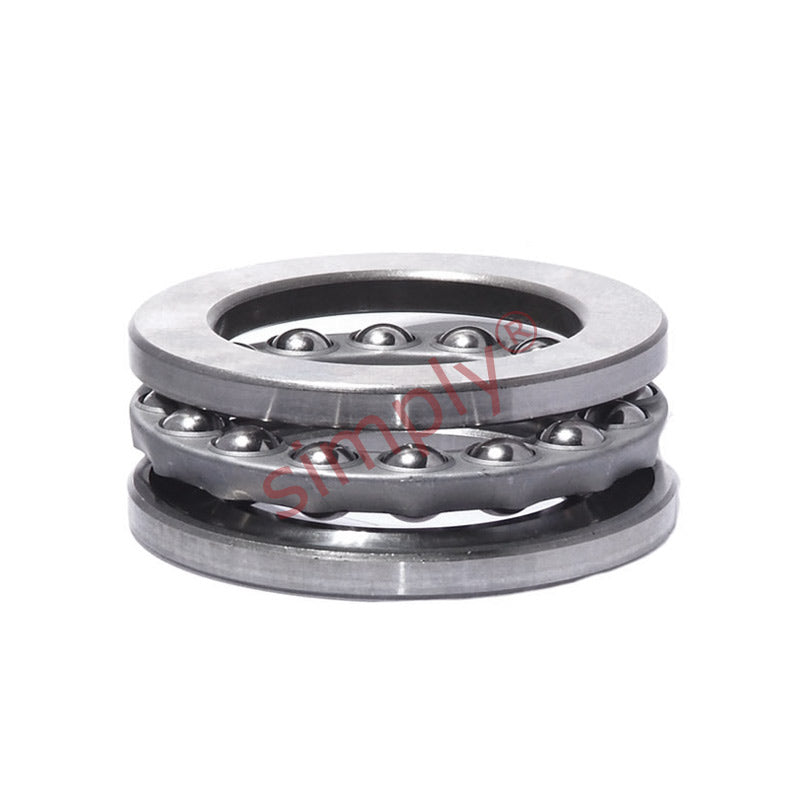

• 51109 Thrust Ball Bearing 45x65x14mm
1 1

SKU: 51109.MB

51109 Thrust Ball Bearing 45x65x14mm

51109 Thrust Ball Bearing 45x65x14mm
Rs. 2,204.48
Rs. 2,204.48
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 1,961.99
19+ Rs. 1,851.76
29+ Rs. 1,829.72
39+ Rs. 1,807.67
49+ Rs. 1,785.63
74+ Rs. 1,763.58
99+ Rs. 1,653.36
199+ Rs. 1,631.32
249+ Rs. 1,609.27
499+ Rs. 1,587.23
999+ Rs. 1,543.14
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Thrust Ball Thrust Bearings: These bearings consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
Benefits: Axial loading, ease of mounting and assembly
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
45mm
Outside Diameter:
65mm
Width:
14mm
Technical
d 45mm
D 65mm
H 14mm
Dynamic load C 26.5 kN
Static load Co 69.5 kN
Fatigue load limit Pu 2.55 kN
Minimum load factor A 0.025
Reference speed 4500 rpm
Limiting speed 6300 rpm
Weight 0.14 kg
d1 65mm
D1 47mm
r1r2 min 0.6mm
da min 57mm
Da max 53mm
ra max 0.6mm
