SKU: 50-3-SYN-NO30-RENOLD
Renold Synergy 50-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 5/8 inch Pitch
Renold Synergy 50-3-NO30 ANSI / AS Triplex Chain Double Cranked Link 5/8 inch Pitch
Regular price
Rs. 8,019.47
ex VAT
Regular price
Sale price
Rs. 8,019.47
ex VAT
In stock
Price Break
10+
Rs. 7,137.33
19+
Rs. 6,736.35
29+
Rs. 6,656.16
39+
Rs. 6,575.97
49+
Rs. 6,495.77
74+
Rs. 6,415.58
99+
Rs. 6,014.60
199+
Rs. 5,934.41
249+
Rs. 5,854.21
499+
Rs. 5,774.02
999+
Rs. 5,613.63
Couldn't load pickup availability
Description
Description

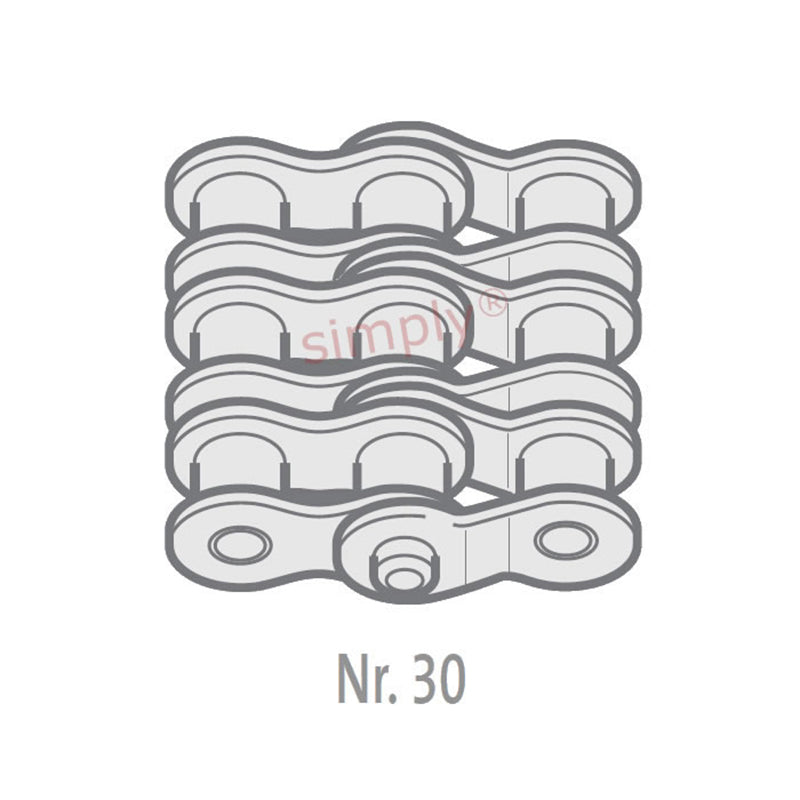

| Renold No. 30 ANSI Triplex Connecting Link: Double cranked links are available for most sizes and types of chain. The unit consists of an inner link (No. 4), with cranked links retained permanently in position by a riveted bearing pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 56.5mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 0.01kg/m |
