Renold SD 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold SD 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
Rs. 1,001.31
ex VAT
Regular price
Sale price
Rs. 1,001.31
ex VAT
In stock
Price Break
10+
Rs. 891.17
19+
Rs. 841.10
29+
Rs. 831.09
39+
Rs. 821.07
49+
Rs. 811.06
74+
Rs. 801.05
99+
Rs. 750.98
199+
Rs. 740.97
249+
Rs. 730.96
499+
Rs. 720.94
999+
Rs. 700.92
Couldn't load pickup availability
Description
Description

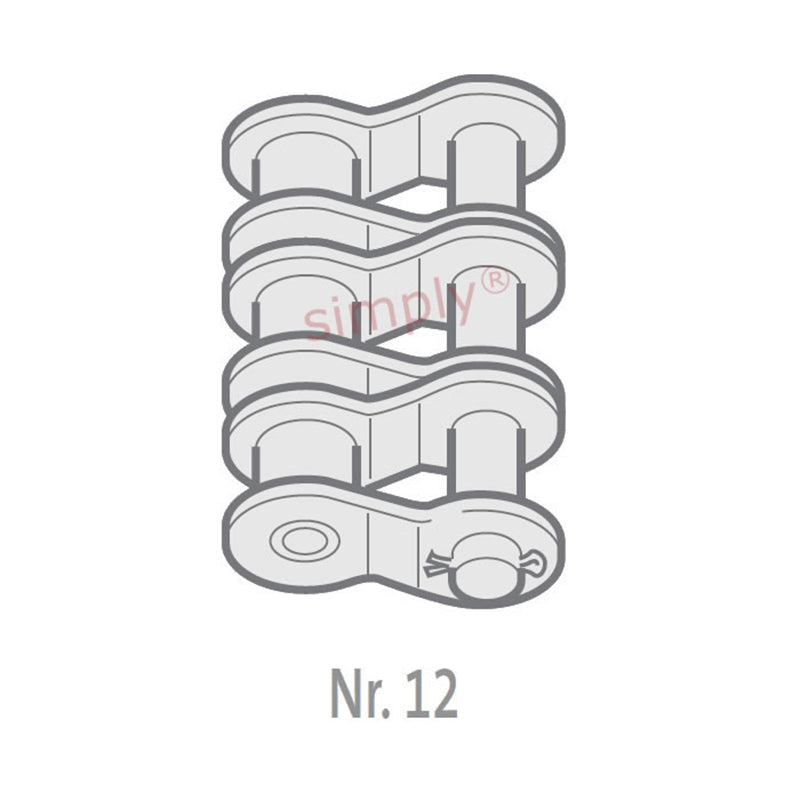

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 15.09mm |
| Plate Width Inner max (E) | 2mm |
| Plate Width Outer max (F) | 2mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H1) | 57.5mm |
| Connecting Link Extension max (J) | 3.9mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 18.11kg/m |
