SKU: 50-3-BB-NO12-RENOLD
Renold Blue Box 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Renold Blue Box 50-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 5/8 inch Pitch
Regular price
Rs. 3,775.07
ex VAT
Regular price
Sale price
Rs. 3,775.07
ex VAT
In stock
Price Break
10+
Rs. 3,359.81
19+
Rs. 3,171.06
29+
Rs. 3,133.31
39+
Rs. 3,095.56
49+
Rs. 3,057.81
74+
Rs. 3,020.06
99+
Rs. 2,831.30
199+
Rs. 2,793.55
249+
Rs. 2,755.80
499+
Rs. 2,718.05
999+
Rs. 2,642.55
Couldn't load pickup availability
Description
Description

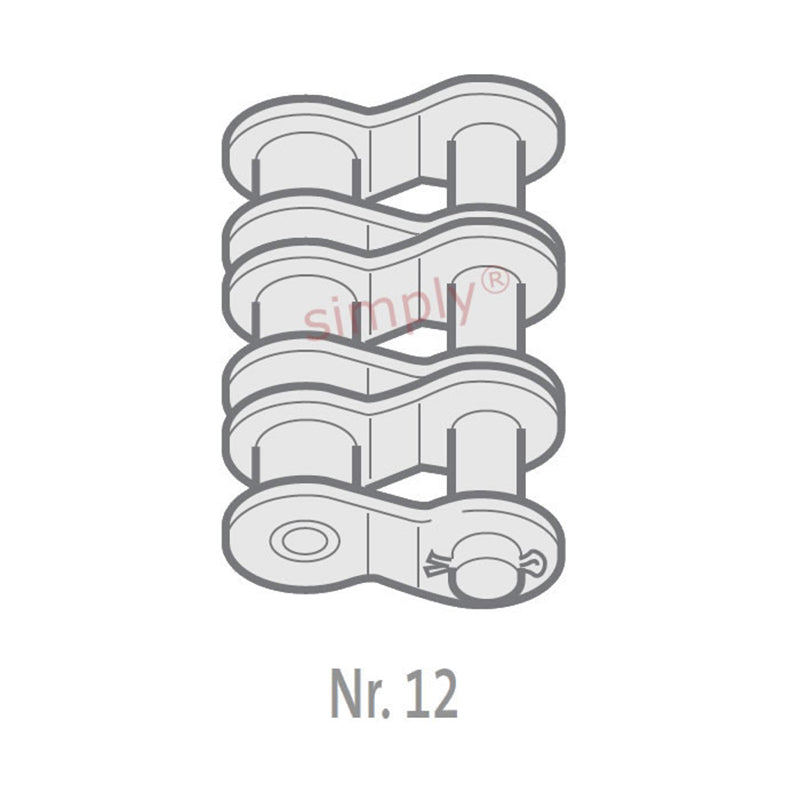

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 56.5mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 65400 N |
| Weight | 0.025kg/m |
