SKU: 50-2-BB-NO11-RENOLD
Renold Blue Box 50-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
Renold Blue Box 50-2-NO11 ANSI / AS Duplex Chain Cottered Connecting Link 5/8 inch Pitch
Regular price
Rs. 1,392.63
ex VAT
Regular price
Sale price
Rs. 1,392.63
ex VAT
In stock
Price Break
10+
Rs. 1,239.44
19+
Rs. 1,169.81
29+
Rs. 1,155.88
39+
Rs. 1,141.96
49+
Rs. 1,128.03
74+
Rs. 1,114.10
99+
Rs. 1,044.47
199+
Rs. 1,030.55
249+
Rs. 1,016.62
499+
Rs. 1,002.69
999+
Rs. 974.84
Couldn't load pickup availability
Description
Description

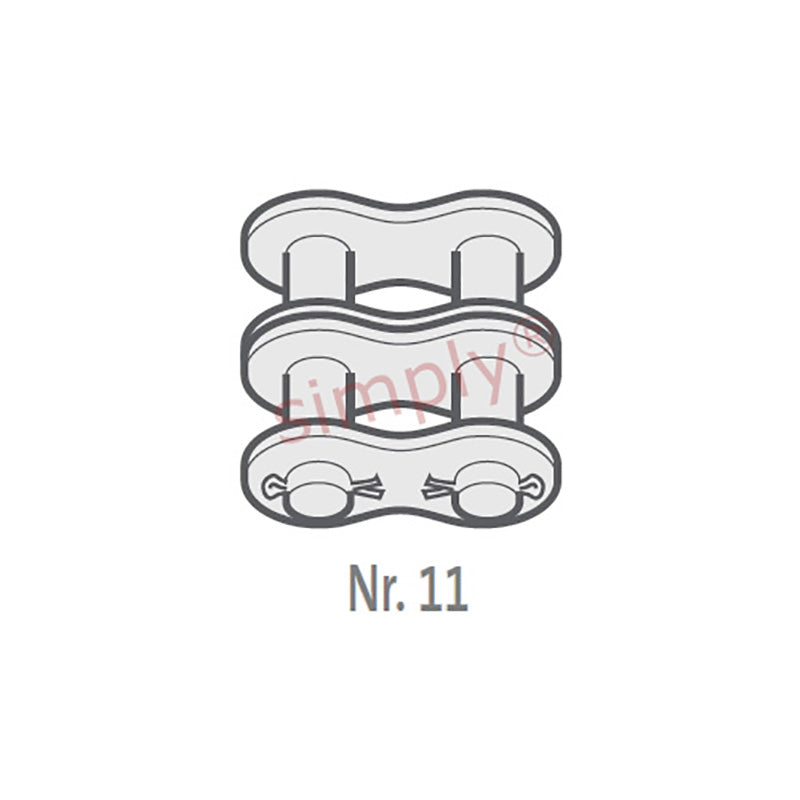

| Renold No. 11 ANSI Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 15.88mm = 0.625 (5/8) inch
Technical
Technical
| Pitch (A) | 0.625 inch |
|---|---|
| Pitch (A) | 15.875mm |
| Inside Width min (B) | 9.4mm |
| Roller Diameter max (C) | 10.16mm |
| Plate Height max (D) | 14.6mm |
| Plate Width Inner max (E) | 2.04mm |
| Plate Width Outer max (F) | 2.04mm |
| Pin Diameter max (G) | 5.08mm |
| Pin Length max (H2) | 38.4mm |
| Connecting Link Extension max (J) | 2.7mm |
| Transverse Pitch nom (K) | 18.11mm |
| ISO606 Tensile Strength min | 43600 N |
| Weight | 0.01kg/m |
