SKU: 4308-EU

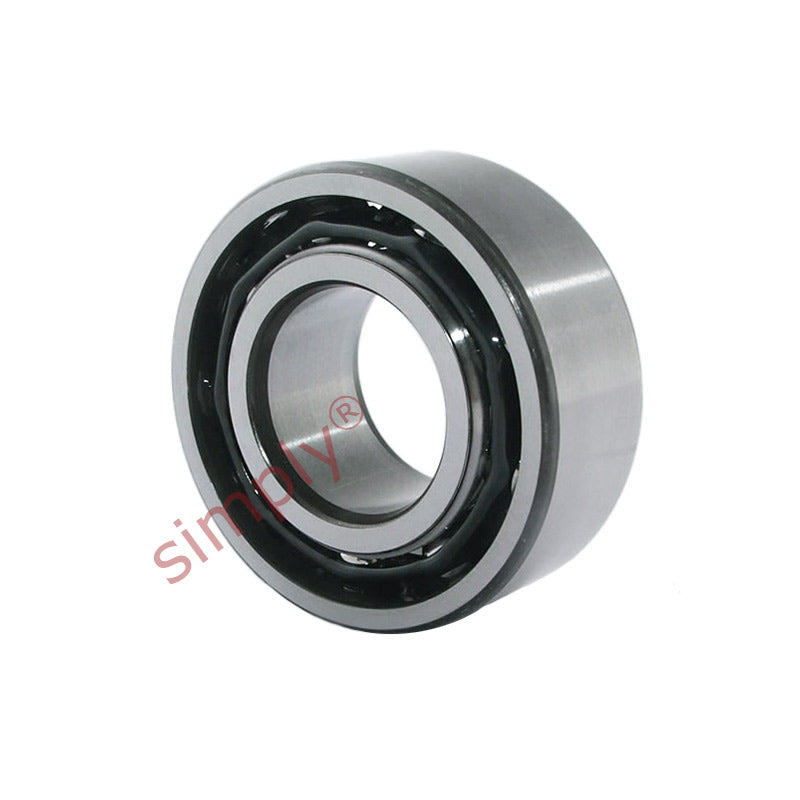

4308 Budget Double Row Deep Groove Ball Bearing 40x90x33mm
4308 Budget Double Row Deep Groove Ball Bearing 40x90x33mm
Regular price
Rs. 1,195.70
Regular price
Sale price
Rs. 1,195.70
Taxes included.
In stock
Price Break
10+
Rs. 1,064.17
19+
Rs. 1,004.39
29+
Rs. 992.43
39+
Rs. 980.47
49+
Rs. 968.52
74+
Rs. 956.56
99+
Rs. 896.78
199+
Rs. 884.82
249+
Rs. 872.86
499+
Rs. 860.90
999+
Rs. 836.99
Description
Description
|
Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 90mm
- Width:
- 33mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 40mm |
|---|---|
| D | 90mm |
| B | 33mm |
| Dynamic load C | 55.9 kN |
| Static load Co | 45 kN |
| Fatigue load limit Pu | 1.9 kN |
| Reference speed | 12000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 0.95 kg |
| d1 | 56.9mm |
| D1 | 73.1mm |
| r1r2 min | 1.5mm |
| da min | 49mm |
| Da max | 81mm |
| ra max | 1.5mm |
| kr | 0.06 |
| fo | 14 |
