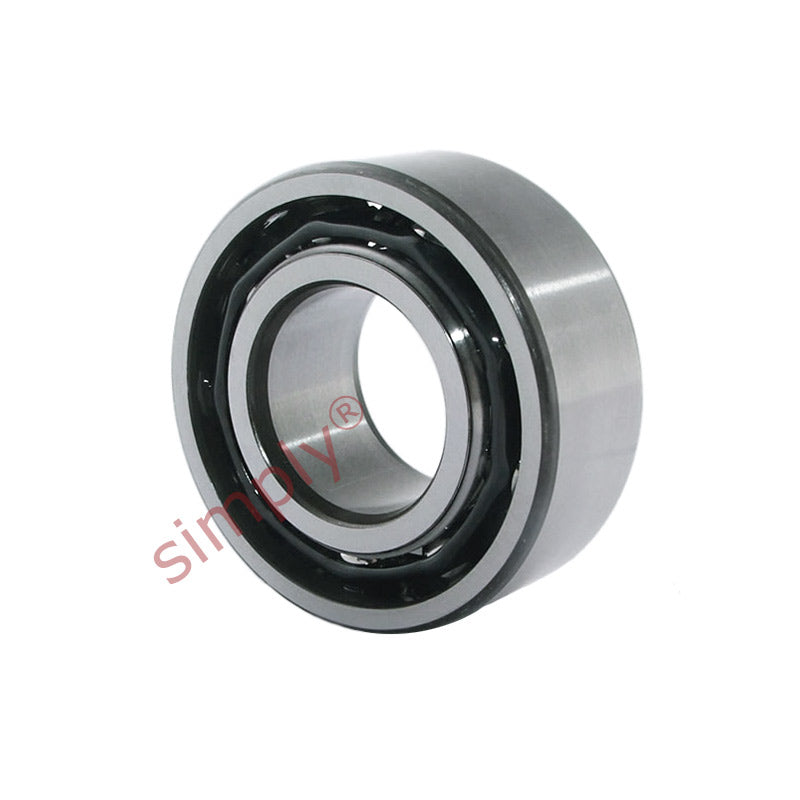

• 4302 Budget Double Row Deep Groove Ball Bearing 15x42x17mm
1 1

SKU: 4302-EU

4302 Budget Double Row Deep Groove Ball Bearing 15x42x17mm

4302 Budget Double Row Deep Groove Ball Bearing 15x42x17mm
Rs. 955.02
Rs. 955.02
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 849.97
19+ Rs. 802.22
29+ Rs. 792.67
39+ Rs. 783.12
49+ Rs. 773.57
74+ Rs. 764.02
99+ Rs. 716.27
199+ Rs. 706.71
249+ Rs. 697.16
499+ Rs. 687.61
999+ Rs. 668.51
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability
Benefits: Higher axial and radial load than single row, same bore and diameter as single row equivalent size

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Outside Diameter:
42mm
Width:
17mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 15mm
D 42mm
B 17mm
Dynamic load C 14.8 kN
Static load Co 9.5 kN
Fatigue load limit Pu 0.405 kN
Reference speed 28000 rpm
Limiting speed 15000 rpm
Weight 0.12 kg
d1 24.5mm
D1 32.5mm
r1r2 min 1mm
da min 20.6mm
Da max 36.4mm
ra max 1mm
kr 0.06
fo 13
