SKU: 42362/42587B-TIM

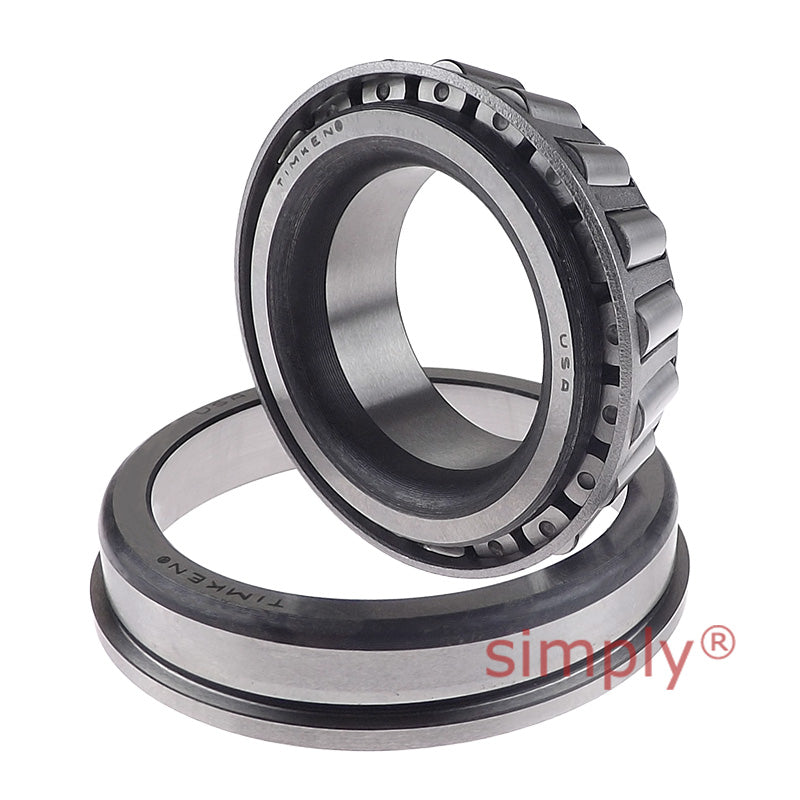

Timken 42362/42587B TSF Single-Row Taper Roller Bearing 3.625x5.875x1.25 inch
Timken 42362/42587B TSF Single-Row Taper Roller Bearing 3.625x5.875x1.25 inch
Regular price
Rs. 45,636.13
Regular price
Sale price
Rs. 45,636.13
Taxes included.
In stock
Price Break
10+
Rs. 40,616.16
19+
Rs. 38,334.35
29+
Rs. 37,877.99
39+
Rs. 37,421.63
49+
Rs. 36,965.27
74+
Rs. 36,508.90
99+
Rs. 34,227.10
199+
Rs. 33,770.74
249+
Rs. 33,314.37
499+
Rs. 32,858.01
999+
Rs. 31,945.29
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 92.08mm = 3.625 (3-5/8) inch
- Outside Diameter:
- 149.23mm = 5.875 (5-7/8) inch
- Width:
- 31.75mm = 1.25 (1-1/4) inch
Technical
Technical
| d | 92.075mm = 3.625 inch |
|---|---|
| D | 149.225mm = 5.875 inch |
| T1 | 12.7mm = 0.5 inch |
| Dynamic (1) C1 | 151000N |
| Factors (5) e | 0.49 |
| Factors (5) Y | 1.22 |
| Dynamic (2) C90 | 39100N |
| Dynamic (2) Ca90 | 33000N |
| Factors (5) K | 1.19 |
| Static Co | 241000N |
| Bearing B | 28.971mm = 1.1406 inch |
| Bearing C | 24.608mm = 0.9688 inch |
| Bearing a(3) | 3mm = 0.12 inch |
| Bearing D1 | 154.681mm = 6.0898 inch |
| Bearing C2 | 5.558mm = 0.2188 inch |
| Shaft max shaft fillet radius R(4) | 3.5mm = 0.14 inch |
| Shaft backing shoulder diameter da | 101mm = 3.98 inch |
| Shaft backing shoulder diameter db | 107mm = 4.21 inch |
| Housing backing shoulder diameter Da | 152mm = 5.98 inch |
| G1 | 130 |
| G2 | 37.2 |
| Cg | 0.1386 |
