SKU: 4207-EU

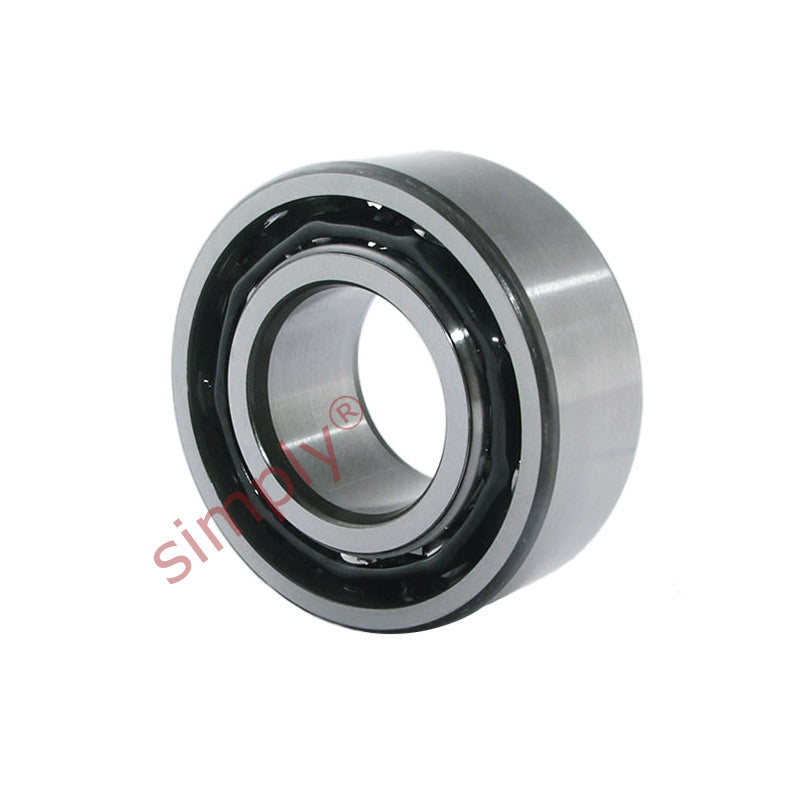

4207 Budget Double Row Deep Groove Ball Bearing 35x72x23mm
4207 Budget Double Row Deep Groove Ball Bearing 35x72x23mm
Regular price
Rs. 1,477.34
Regular price
Sale price
Rs. 1,477.34
Taxes included.
Equivalent to: LDJ35
In stock
Price Break
10+
Rs. 1,314.83
19+
Rs. 1,240.97
29+
Rs. 1,226.19
39+
Rs. 1,211.42
49+
Rs. 1,196.65
74+
Rs. 1,181.87
99+
Rs. 1,108.01
199+
Rs. 1,093.23
249+
Rs. 1,078.46
499+
Rs. 1,063.68
999+
Rs. 1,034.14
Description
Description
|
Double Row Deep Groove Ball Bearings: Similar in design to single row deep groove ball bearings, they have two parallel deep grooves and high conformity between the balls and the raceways. They are able to carry axial loads in both directions in addition to radial loads. These are particularly suited to applications where a single row ball bearing's load bearing capacity would be insufficient. Made with the same bore and outside diameters as the single row series they are a little bit wider but offer far greater load bearing ability |
Equivalent: LDJ35
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| B | 23mm |
| Dynamic load C | 35.1 kN |
| Static load Co | 28.5 kN |
| Fatigue load limit Pu | 1.2 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 8000 rpm |
| Weight | 0.4 kg |
| d1 | 47.5mm |
| D1 | 59.5mm |
| r1r2 min | 1.1mm |
| da min | 42mm |
| Da max | 65mm |
| ra max | 1mm |
| kr | 0.05 |
| fo | 14 |
