SKU: 40B-2-NO11-DUN
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Branded 40B-2-NO11 BS Duplex Chain Cottered Connecting Link 2-1/2 inch Pitch
Regular price
Rs. 7,865.47
Regular price
Sale price
Rs. 7,865.47
Taxes included.
Equivalent to: 40B-2-CL-COT 40B-2-CL
In stock
Price Break
10+
Rs. 7,000.27
19+
Rs. 6,606.99
29+
Rs. 6,528.34
39+
Rs. 6,449.69
49+
Rs. 6,371.03
74+
Rs. 6,292.38
99+
Rs. 5,899.10
199+
Rs. 5,820.45
249+
Rs. 5,741.79
499+
Rs. 5,663.14
999+
Rs. 5,505.83
Description
Description

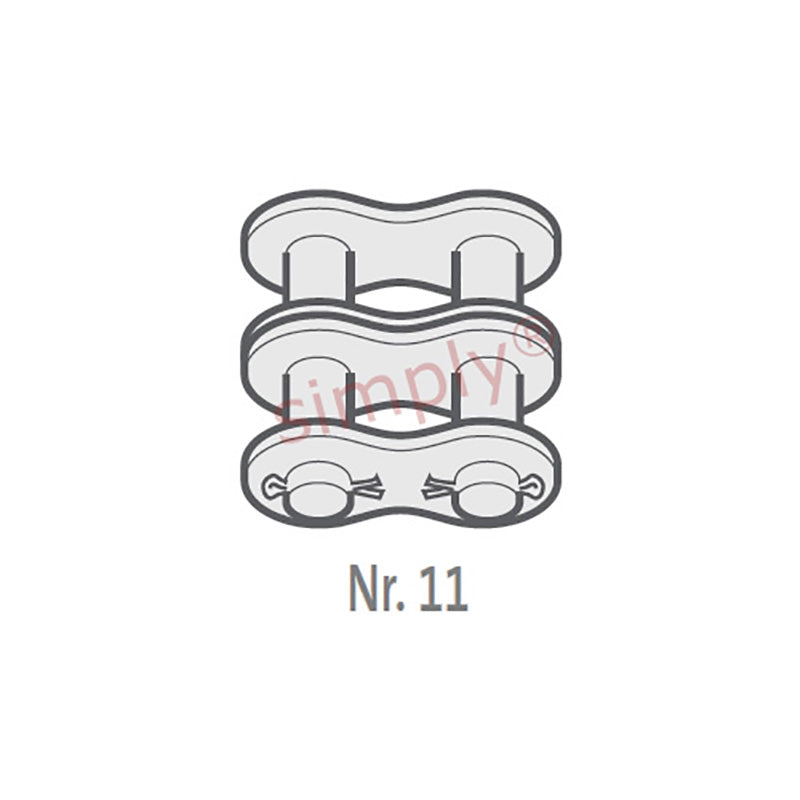

Dunlop COT / No. 11 European (BS) Duplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
Equivalent: 40B-2-CL-COT 40B-2-CL
- Brand / Quality:
- Branded - Good Quality
- Pitch:
- 63.5mm = 2.5 (2-1/2) inch
Technical
Technical
| Pitch (A) | 2.5 inch |
|---|---|
| Pitch (A) | 63.5mm |
| Inside Width min (B) | 39.3mm |
| Roller Diameter max (C) | 39.37mm |
| Plate Height max (D) | 52.96mm |
| Plate Width Inner max (E) | 8.13mm |
| Plate Width Outer max (F) | 8.13mm |
| Pin Diameter max (G) | 22.89mm |
| Pin Length max (H2) | 150.5mm |
| Connecting Link Extension max (J) | 9.5mm |
| Transverse Pitch nom (K) | 72.29mm |
| ISO606 Tensile Strength min | 630000 N |
| Weight | 2kg/m |
