SKU: 400-833-4490

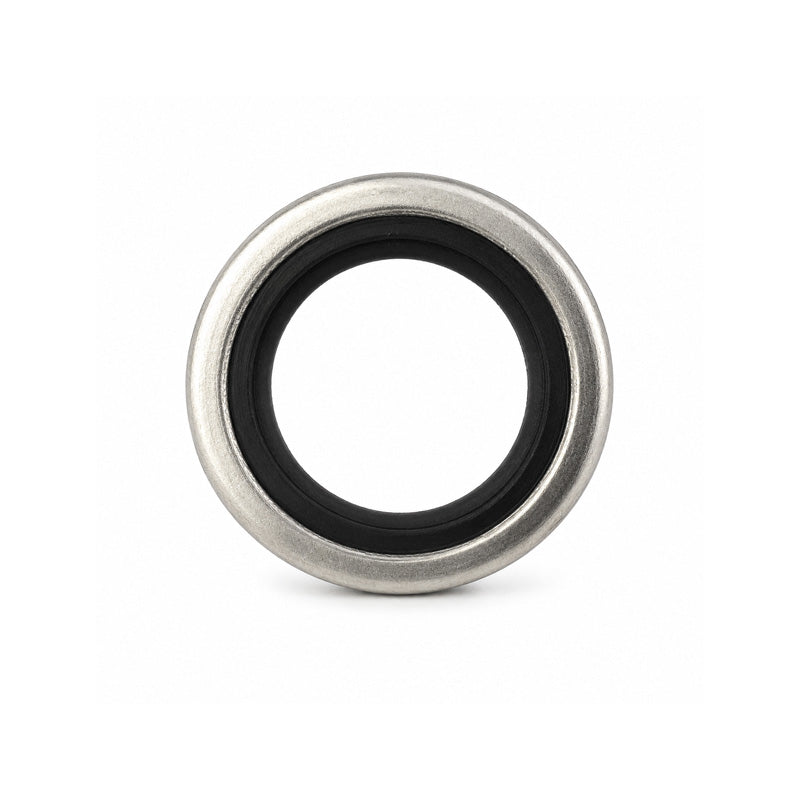

Nitrile Self Centering Bonded Sealing Washer To Fit 1-1/2 inch BSP
Nitrile Self Centering Bonded Sealing Washer To Fit 1-1/2 inch BSP
Regular price
Rs. 427.58
Regular price
Sale price
Rs. 427.58
Taxes included.
In stock
Price Break
5+
Rs. 299.31
10+
Rs. 256.55
20+
Rs. 235.17
50+
Rs. 213.79
100+
Rs. 171.03
500+
Rs. 149.65
1000+
Rs. 128.27
Description
Description
Self-Centering Bonded Seal Washers: These washers are used to seal bolt heads and prevent leakage from hydraulic fittings, pipe joints and valve bodies. A bonded washer consists of a metal washer bonded to a rubber internal diameter that is wider than the washer. As the bolt is tightened, the rubber seal element is compressed until the bolt head contacts with the metal outer of the washer, creating an efficient high-pressure seal. The inside material will be made from Nitrile Rubber. EPDM, Silicone, and FKM are available upon request.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- To Fit 1-1/2 inch BSP
- Seals / Shields:
- Nitrile
- Material:
- Mild Steel
Technical
Technical

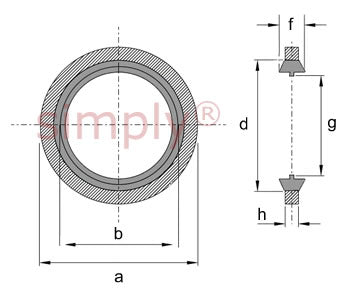

| a | 58.60mm approx. |
|---|---|
| b | 48.44mm approx. |
| d | 51.39mm approx. |
| h | 3.40mm approx. |
