SKU: 40-3-SD-NO26-RENOLD
Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Renold SD 40-3-NO26 ANSI / AS Triplex Chain Connecting Link With Spring Clip 1/2 inch Pitch
Regular price
Rs. 998.76
ex VAT
Regular price
Sale price
Rs. 998.76
ex VAT
In stock
Price Break
10+
Rs. 888.90
19+
Rs. 838.96
29+
Rs. 828.97
39+
Rs. 818.98
49+
Rs. 809.00
74+
Rs. 799.01
99+
Rs. 749.07
199+
Rs. 739.08
249+
Rs. 729.09
499+
Rs. 719.11
999+
Rs. 699.13
Couldn't load pickup availability
Description
Description

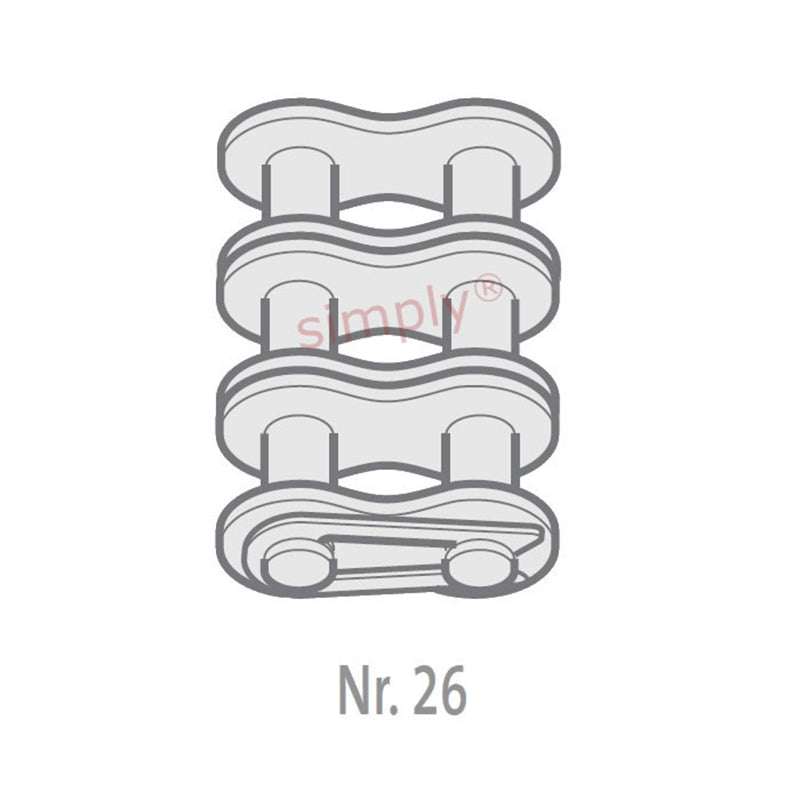

| Renold No. 26 ANSI Triplex Connecting Link: Used on short pitch chains only. Supplied with two connecting pins riveted into the outer plate, the clearance fit connecting plate being secured by means of a spring clip, No. 27, which snaps into the grooves in the pins. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.95mm |
| Plate Height max (D) | 11.9mm |
| Plate Width Inner max (E) | 1.5mm |
| Plate Width Outer max (F) | 1.5mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H1) | 45.2mm |
| Connecting Link Extension max (J) | 3.45mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 14.38kg/m |
