SKU: 40-3-BB-NO12-RENOLD
Renold Blue Box 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Renold Blue Box 40-3-NO12 ANSI / AS Triplex Chain Single Cranked Cottered Link 1/2 inch Pitch
Regular price
Rs. 3,484.78
ex VAT
Regular price
Sale price
Rs. 3,484.78
ex VAT
In stock
Price Break
10+
Rs. 3,101.45
19+
Rs. 2,927.22
29+
Rs. 2,892.37
39+
Rs. 2,857.52
49+
Rs. 2,822.67
74+
Rs. 2,787.82
99+
Rs. 2,613.59
199+
Rs. 2,578.74
249+
Rs. 2,543.89
499+
Rs. 2,509.04
999+
Rs. 2,439.35
Couldn't load pickup availability
Description
Description

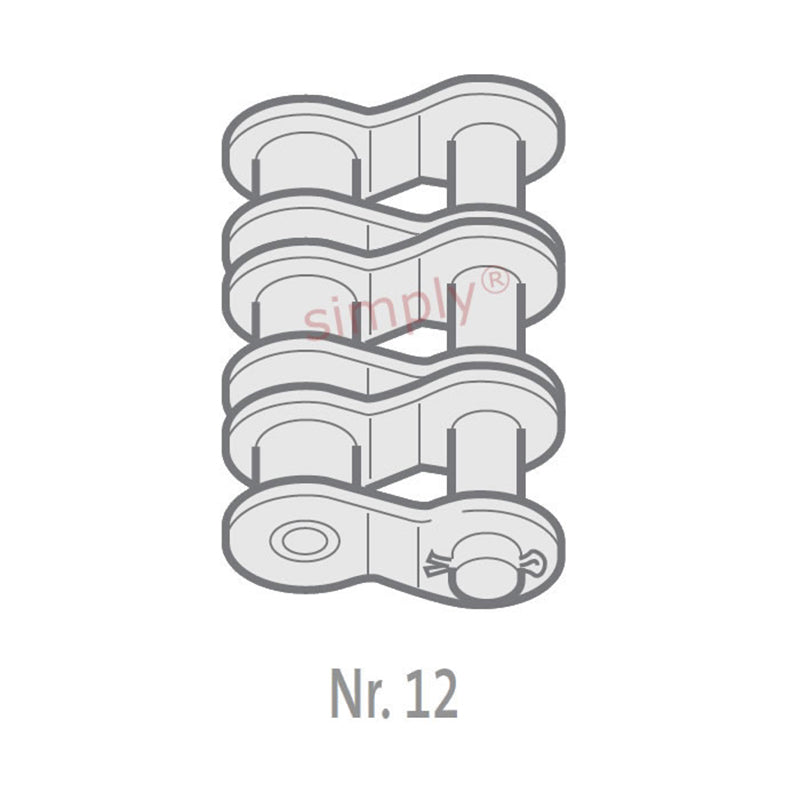

| Renold No. 12 ANSI Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin. |
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 12.7mm = 0.5 (1/2) inch
Technical
Technical
| Pitch (A) | 0.5 inch |
|---|---|
| Pitch (A) | 12.7mm |
| Inside Width min (B) | 7.85mm |
| Roller Diameter max (C) | 7.92mm |
| Plate Height max (D) | 11.2mm |
| Plate Width Inner max (E) | 1.55mm |
| Plate Width Outer max (F) | 1.55mm |
| Pin Diameter max (G) | 3.96mm |
| Pin Length max (H2) | 45.1mm |
| Connecting Link Extension max (J) | 2.1mm |
| Transverse Pitch nom (K) | 14.38mm |
| ISO606 Tensile Strength min | 41700 N |
| Weight | 0.03kg/m |
