SKU: 399D/394AS-TIM

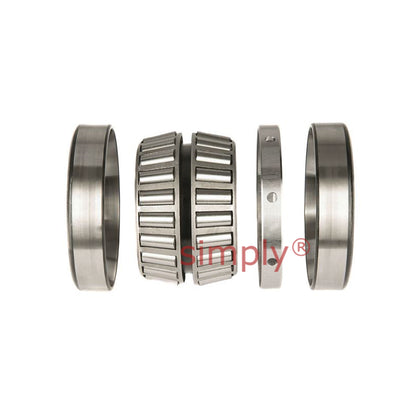

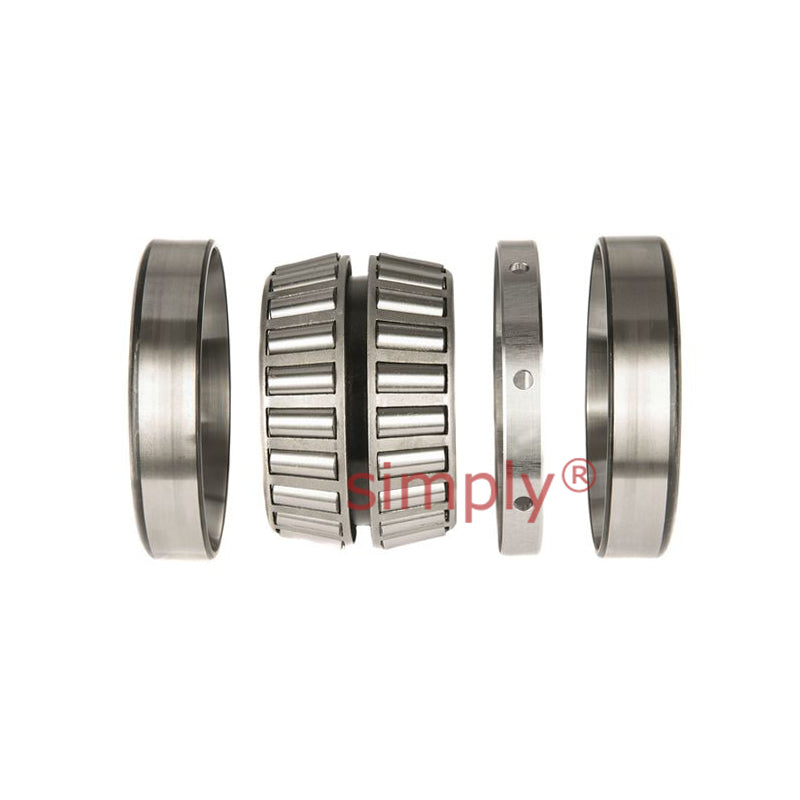

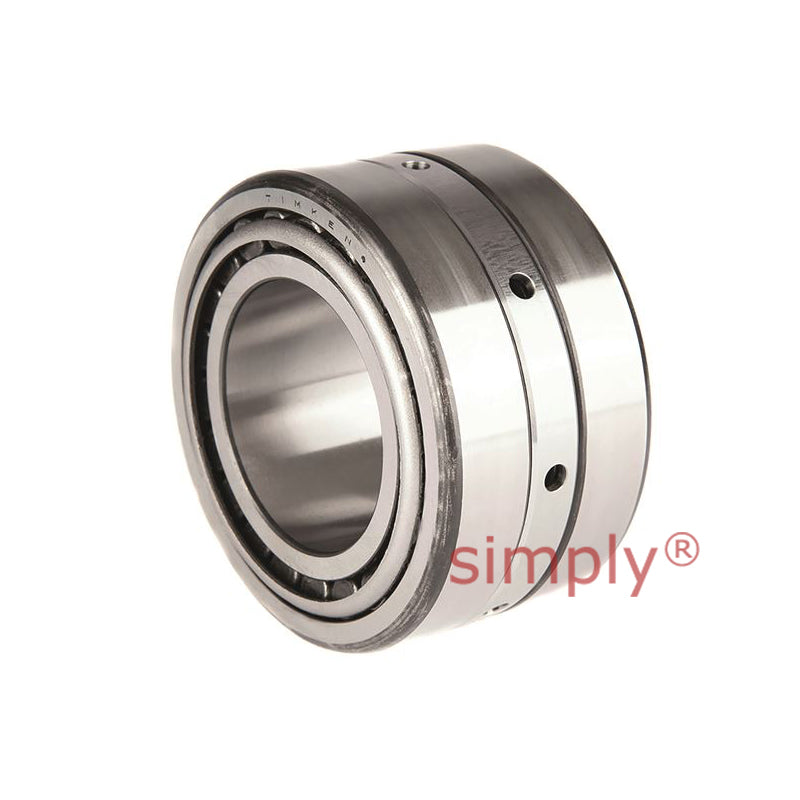

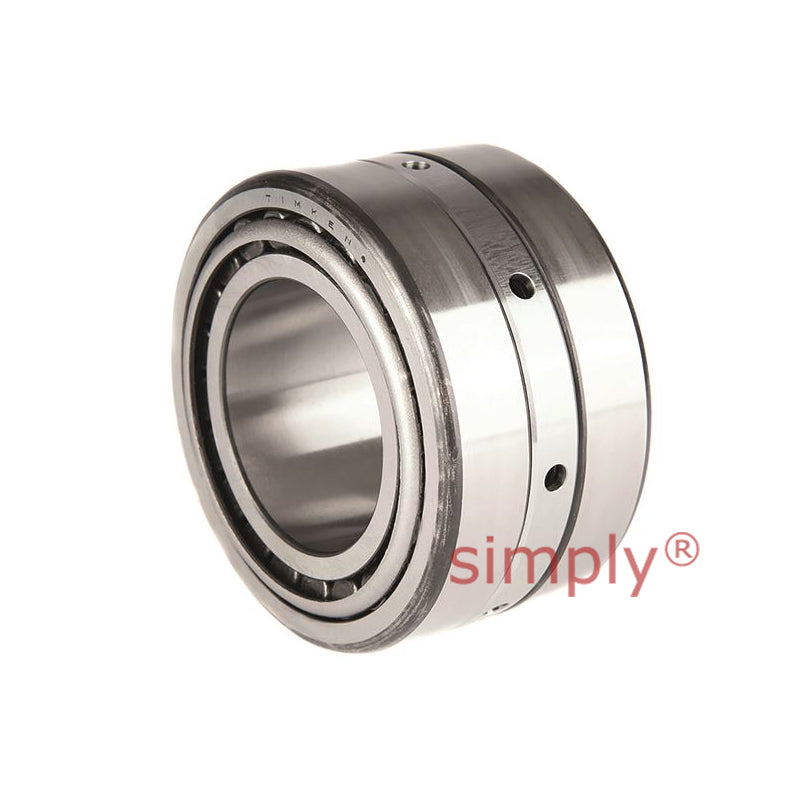

Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
Timken 399D/394AS TDI Double Inner Race Taper Roller Bearing 2.4375x4.3307x2.187x2.187 inch
Regular price
Rs. 55,581.91
Regular price
Sale price
Rs. 55,581.91
Taxes included.
In stock
Price Break
10+
Rs. 49,467.90
19+
Rs. 46,688.80
29+
Rs. 46,132.99
39+
Rs. 45,577.17
49+
Rs. 45,021.35
74+
Rs. 44,465.53
99+
Rs. 41,686.43
199+
Rs. 41,130.61
249+
Rs. 40,574.79
499+
Rs. 40,018.98
999+
Rs. 38,907.34
Description
Description
Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 61.91mm = 2.437 (2-7/16) inch
- Outside Diameter:
- 110mm = 4.331 inch
- Width:
- 55.56mm = 2.187 (2-3/16) inch
Technical
Technical
| d | 61.912mm = 2.4375 inch |
|---|---|
| D | 110mm = 4.3307 inch |
| T | 55.55mm = 2.187 inch |
| C | 55.55mm = 2.187 inch |
| Dynamic (1) C1 | 159000N |
| Factors (5) e | 0.4 |
| Factors (5) Y1 | 1.68 |
| Factors (5) Y2 | 2.5 |
| Dynamic (2) C90 | 23700N |
| Dynamic (2) Ca90 | 16300N |
| Dynamic (2) C90(2) | 41300N |
| Factors (5) K | 1.45 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 70mm = 2.76 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 99mm = 3.9 inch |
| G1 | 56 |
| G2 | 21.4 |
| Cg | 0.0984 |
