SKU: 3803.B.2RSR.TVH

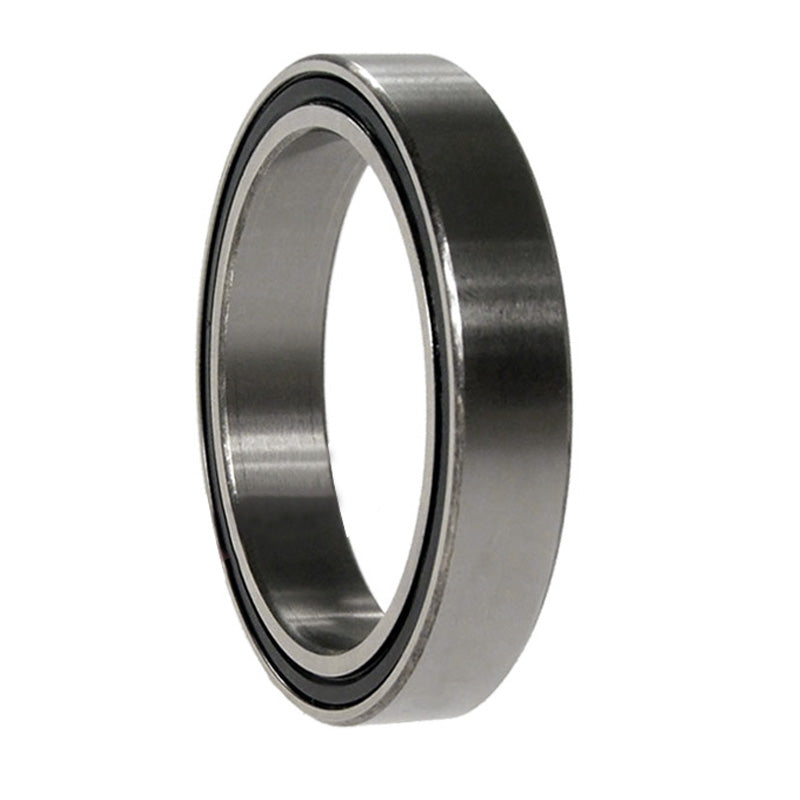

INA 3803B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 17x26x7mm
INA 3803B2RSRTVH Rubber Sealed Double Row Angular Contact Ball Bearing 17x26x7mm
Regular price
Rs. 3,135.18
Regular price
Sale price
Rs. 3,135.18
Taxes included.
Equivalent to: 5803B2RSRTVH
Low stock
Price Break
10+
Rs. 2,790.31
19+
Rs. 2,633.55
29+
Rs. 2,602.20
39+
Rs. 2,570.85
49+
Rs. 2,539.50
74+
Rs. 2,508.14
99+
Rs. 2,351.39
199+
Rs. 2,320.03
249+
Rs. 2,288.68
499+
Rs. 2,257.33
999+
Rs. 2,194.63
Description
Description
|
Double Row Thin Section Sealed Angular Contact Ball Bearings: These bearings have large bore to outside diameter ratio and have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and have a tremendous load bearing capacity Benefits: Compact, rigid, accommodates tilting, radial and axial loads, rubber seals |
Equivalent: 5803B2RSRTVH
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 26mm
- Width:
- 7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 17mm |
|---|---|
| D | 26mm |
| B | 7mm |
| a | 12.3mm |
| d1 max | 23.8mm |
| Da max | 24mm |
| da min | 19mm |
| ra max | 0.3mm |
| r min | 0.3mm |
| Contact angle α | 25° |
| Weight | 0.013 kg |
| Dynamic load Cr | 2430 N |
| Static load Cor | 2020 N |
| Fatigue limit load Cur | 105 N |
| Reference speed | 14000 rpm |
| Limiting Speed | 13200 rpm |
