SKU: 378DE/372A-TIM

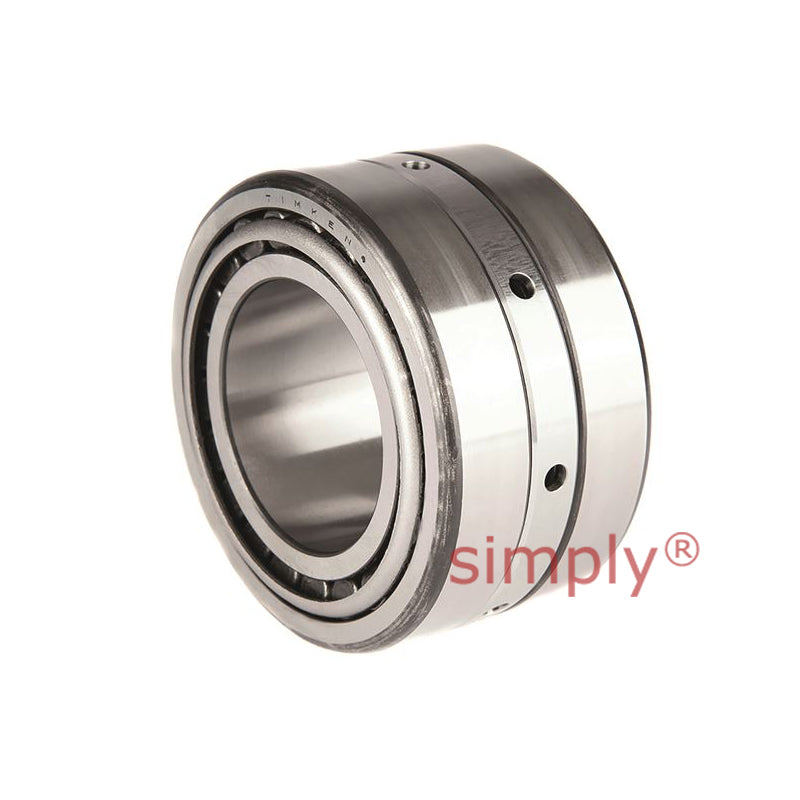

Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
Timken 378DE/372A TDI Double Inner Race Taper Roller Bearing 1.9375x3.8125x2.094x2.094 inch
Regular price
Rs. 47,566.65
Regular price
Sale price
Rs. 47,566.65
Taxes included.
In stock
Price Break
10+
Rs. 42,334.32
19+
Rs. 39,955.99
29+
Rs. 39,480.32
39+
Rs. 39,004.65
49+
Rs. 38,528.99
74+
Rs. 38,053.32
99+
Rs. 35,674.99
199+
Rs. 35,199.32
249+
Rs. 34,723.65
499+
Rs. 34,247.99
999+
Rs. 33,296.66
Description
Description

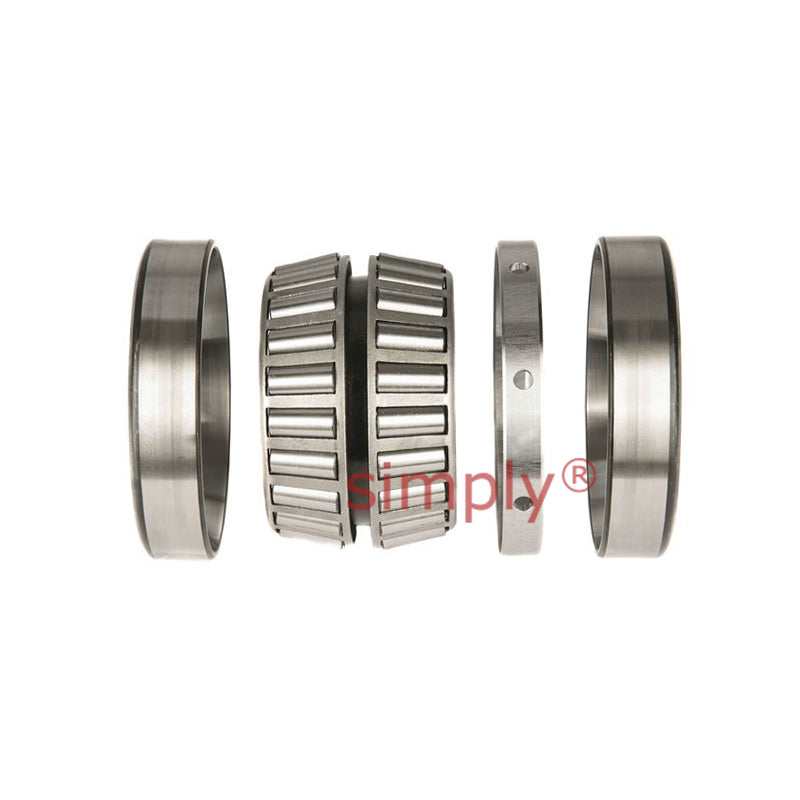

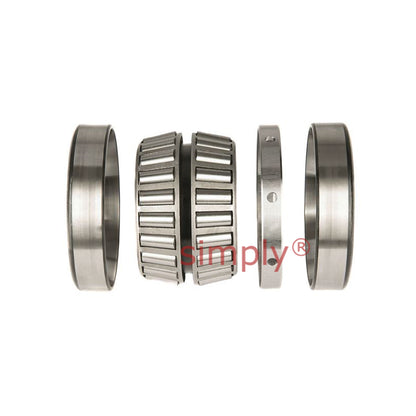

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 96.84mm = 3.813 (3-13/16) inch
- Width:
- 53.19mm = 2.094 (2-3/32) inch
Technical
Technical
| d | 49.212mm = 1.9375 inch |
|---|---|
| D | 96.838mm = 3.8125 inch |
| T | 53.188mm = 2.094 inch |
| C | 53.188mm = 2.094 inch |
| Dynamic (1) C1 | 142000N |
| Factors (5) e | 0.34 |
| Factors (5) Y1 | 1.99 |
| Factors (5) Y2 | 2.97 |
| Dynamic (2) C90 | 21100N |
| Dynamic (2) Ca90 | 12200N |
| Dynamic (2) C90(2) | 36800N |
| Factors (5) K | 1.73 |
| Shaft max shaft fillet radius R (3) | 0.8mm = 0.03 inch |
| Shaft backing shoulder diameter da | 56mm = 2.2 inch |
| Housing max shaft fillet radius r (3) | 1.5mm = 0.06 inch |
| Housing backing shoulder diameter Db | 86mm = 3.39 inch |
| G1 | 37.6 |
| G2 | 15.4 |
| Cg | 0.0816 |
