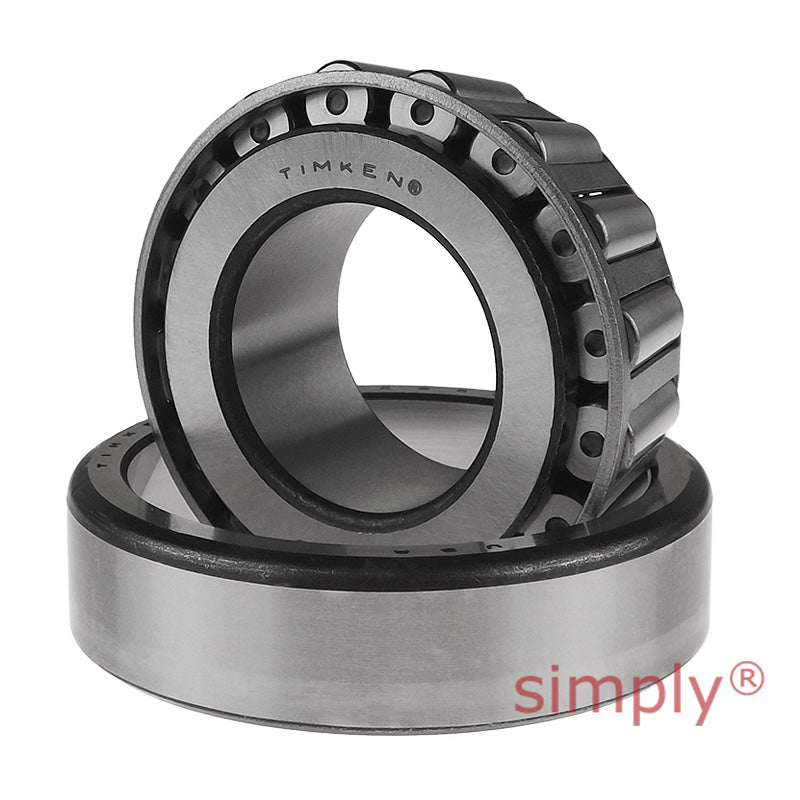

Timken 370A/362 TS Single-Row Taper Roller Bearing 2x3.5433x0.7874 inch
Timken 370A/362 TS Single-Row Taper Roller Bearing 2x3.5433x0.7874 inch
Regular price
Rs. 8,984.36
Regular price
Sale price
Rs. 8,984.36
Taxes included.
In stock
Price Break
10+
Rs. 7,996.08
19+
Rs. 7,546.86
29+
Rs. 7,457.02
39+
Rs. 7,367.18
49+
Rs. 7,277.33
74+
Rs. 7,187.49
99+
Rs. 6,738.27
199+
Rs. 6,648.43
249+
Rs. 6,558.58
499+
Rs. 6,468.74
999+
Rs. 6,289.05
Description
Description
Timken Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm = 3.543 inch
- Width:
- 20mm = 0.787 inch
Technical
Technical
| d | 50.8mm = 2 inch |
|---|---|
| D | 90mm = 3.5433 inch |
| T | 20mm = 0.7874 inch |
| Dynamic (1) C1 | 79500N |
| Factors (5) e | 0.32 |
| Factors (5) Y | 1.88 |
| Dynamic (2) C90 | 20600N |
| Dynamic (2) Ca90 | 11300N |
| Factors (5) K | 1.83 |
| Static C0 | 95800N |
| Bearing B | 22.225mm = 0.875 inch |
| Bearing C | 15.875mm = 0.625 inch |
| Bearing a(3) | -4.3mm = -0.17 inch |
| Shaft max shaft fillet radius R(4) | 5mm = 0.2 inch |
| Shaft backing shoulder diameter da | 56mm = 2.2 inch |
| Shaft backing shoulder diameter db | 65mm = 2.56 inch |
| Housing backing shoulder diameter r(4) | 2mm = 0.08 inch |
| Housing backing shoulder diameter Da | 84mm = 3.31 inch |
| Housing backing shoulder diameter Db | 81mm = 3.19 inch |
| Cage Aa | 0.5mm = 0.02 inch |
| Cage Ab | 1mm = 0.04 inch |
| G1 | 33.8 |
| G2 | 14 |
| Cg | 0.0773 |
