SKU: 361205-EU

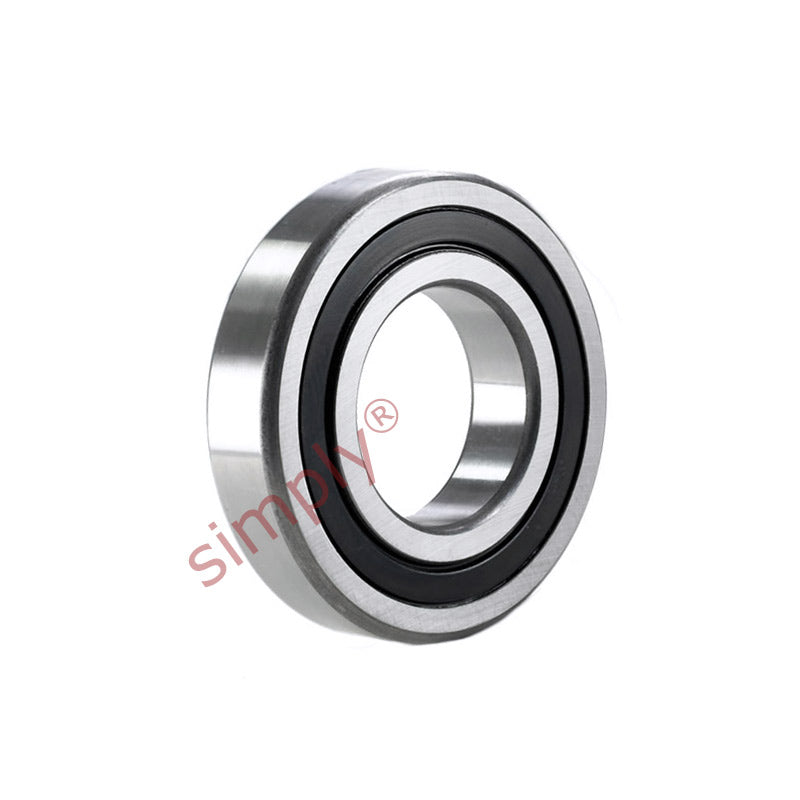

361205 Budget Rubber Sealed Single Row Cam Roller 25x62x15mm
361205 Budget Rubber Sealed Single Row Cam Roller 25x62x15mm
Regular price
Rs. 1,871.63
Regular price
Sale price
Rs. 1,871.63
Taxes included.
Equivalent to: LR205NPP LR2052RSRX LR205X2RSR
In stock
Price Break
10+
Rs. 1,665.75
19+
Rs. 1,572.17
29+
Rs. 1,553.45
39+
Rs. 1,534.74
49+
Rs. 1,516.02
74+
Rs. 1,497.30
99+
Rs. 1,403.72
199+
Rs. 1,385.01
249+
Rs. 1,366.29
499+
Rs. 1,347.57
999+
Rs. 1,310.14
Description
Description
|
Cam Rollers: Are special variants of deep groove ball bearings which have thicker outer races to allow for running in tracks as rollers where misalignment and shock loads may be present. They have the same characteristics as normal deep groove ball bearings, generally have seals although some unsealed versions are available and can also be used in place of standard bearings. They are available with parallel outside diameter or crowned (spherical) for applications where greater misalignment needs to be catered for. |
Equivalent: LR205NPP LR2052RSRX LR205X2RSR
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 15mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 15mm |
| d1 | 31.4mm |
| D1 | 44.2mm |
| r1r2 min | 1mm |
| Limiting speed | 6300 rpm |
| Weight | 0.24 kg |
| Dynamic load C | 12.7 kN |
| Static load Co | 6.8 kN |
| Fatigue load limit Pu | 0.285 kN |
| Maximum dynamic radial load Fr | 12.9 kN |
| Maximum static radial load For | 18.3 kN |
