SKU: 3314-EU

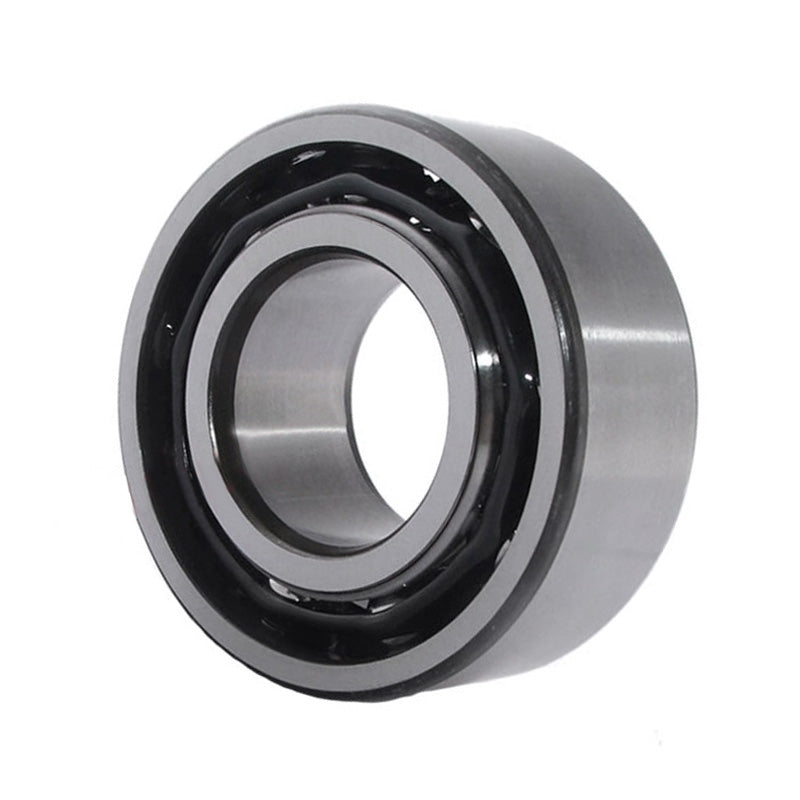

3314 Budget Double Row Angular Contact Ball Bearing 70x150x63.5mm
3314 Budget Double Row Angular Contact Ball Bearing 70x150x63.5mm
Regular price
Rs. 11,516.57
Regular price
Sale price
Rs. 11,516.57
Taxes included.
In stock
Price Break
10+
Rs. 10,249.75
19+
Rs. 9,673.92
29+
Rs. 9,558.75
39+
Rs. 9,443.59
49+
Rs. 9,328.42
74+
Rs. 9,213.26
99+
Rs. 8,637.43
199+
Rs. 8,522.26
249+
Rs. 8,407.10
499+
Rs. 8,291.93
999+
Rs. 8,061.60
Description
Description
Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 63.5mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| B | 63.5mm |
| Dynamic load C | 163 kN |
| Static load Co | 125 kN |
| Fatigue load limit Pu | 5 kN |
| Reference speed | 4300 rpm |
| Limiting speed | 4300 rpm |
| Weight | 5.05 kg |
| d1 | 84.2mm |
| D1 | 139mm |
| r1r2 min | 2.1mm |
| a | 89mm |
| da min | 82mm |
| Da max | 138mm |
| ra max | 2mm |
