SKU: 3309A-2RS1/MT33-SKF

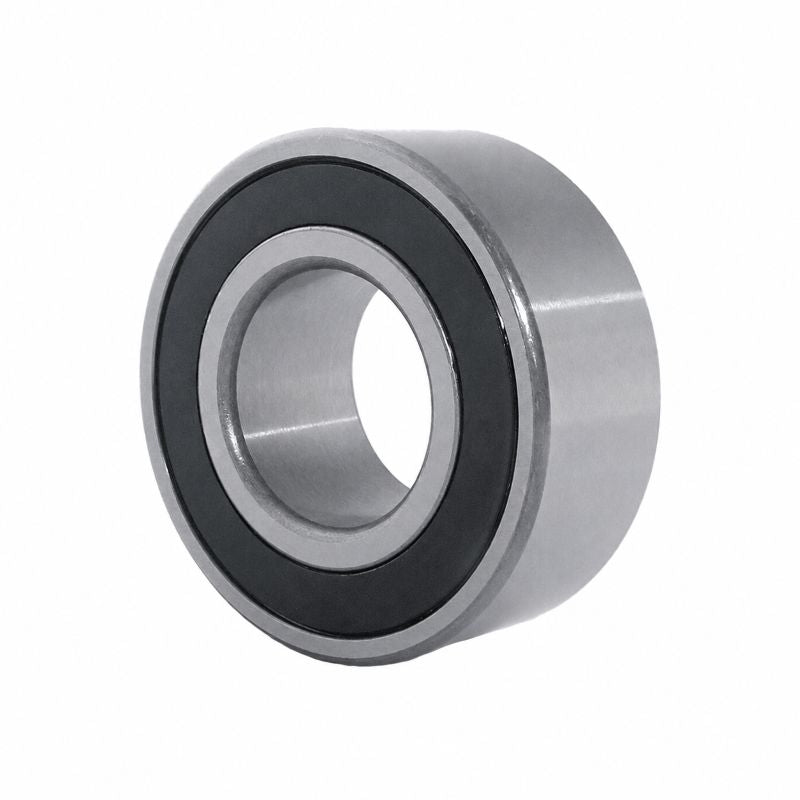

SKF 3309A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x100x39.7mm
SKF 3309A2RS1MT33 Double Row Angular Contact Ball Bearing with 2 Rubber Seals 45x100x39.7mm
Regular price
Rs. 21,904.01
Regular price
Sale price
Rs. 21,904.01
Taxes included.
Equivalent to: 5309
In stock
Price Break
10+
Rs. 19,494.57
19+
Rs. 18,399.37
29+
Rs. 18,180.33
39+
Rs. 17,961.29
49+
Rs. 17,742.25
74+
Rs. 17,523.21
99+
Rs. 16,428.01
199+
Rs. 16,208.97
249+
Rs. 15,989.93
499+
Rs. 15,770.89
999+
Rs. 15,332.81
Share this product
Description
Description
|
SKF Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5309
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 100mm
- Width:
- 39.7mm
- Seals / Shields:
- Rubber Sealed
- Clearance:
- * Standard
Technical
Technical
| d | 45mm |
|---|---|
| D | 100mm |
| B | 39.7mm |
| Dynamic load Cr | 75 kN |
| Static load Cor | 53 kN |
| Fatigue load limit Pu | 2.24 kN |
| Max speed | 4800 rpm |
| Weight | 1.25 kg |
| d1 | 55.6mm |
| D1 | 90mm |
| r1r2 min | 1.5mm |
| a | 58mm |
| da min | 54mm |
| da max | 55.5mm |
| Da max | 91mm |
| ra max | 1.5mm |
