SKU: 3305.NR-KOY

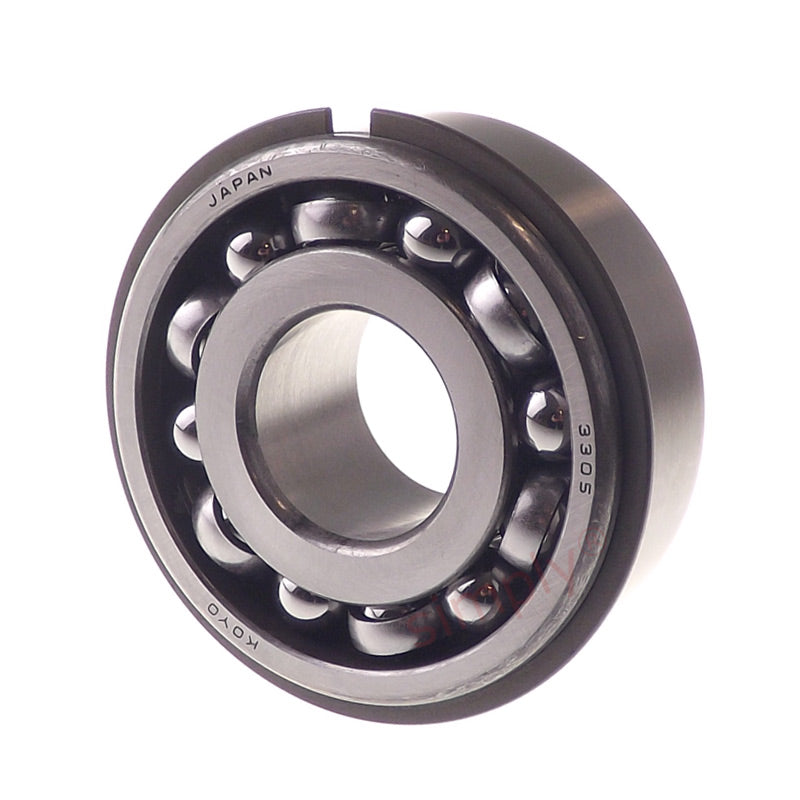

Koyo 3305NR Double Row Angular Contact Ball Bearing with Snap Ring 25x62x25.4mm
Koyo 3305NR Double Row Angular Contact Ball Bearing with Snap Ring 25x62x25.4mm
Regular price
Rs. 7,017.70
ex VAT
Regular price
Sale price
Rs. 7,017.70
ex VAT
Equivalent to: 5305NR
In stock
Price Break
10+
Rs. 6,245.75
19+
Rs. 5,894.87
29+
Rs. 5,824.69
39+
Rs. 5,754.51
49+
Rs. 5,684.34
74+
Rs. 5,614.16
99+
Rs. 5,263.28
199+
Rs. 5,193.10
249+
Rs. 5,122.92
499+
Rs. 5,052.74
999+
Rs. 4,912.39
Couldn't load pickup availability
Description
Description
|
Open Type Double Row Angular Contact Ball Bearings with Snap Ring:Â Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. |
Equivalent: 5305NR
- Brand / Quality:
- Koyo - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 25.4mm
- Snap Ring:
- Snap Ring
Technical
Technical
| d | 25 |
|---|---|
| D | 62 |
| B | 25.4 |
| Dynamic Load | 32kN |
| Static Load | 20.4kN |
| Pu | 0.865 |
| Reference Speed | 11000 |
| Limiting Speed | 11000 |
| kg | 0.35 |
| d1 | 35.7 |
| D1 | 53.4 |
| r1r2 min | 1.1 |
| a | 36 |
| da min | 32 |
| Da max | 55 |
| ra max | 1 |
| Bw | 3.2 |
| Br | 19 |
| Snr | 1.5 |
