SKU: 3303ATN9/C3-SKF

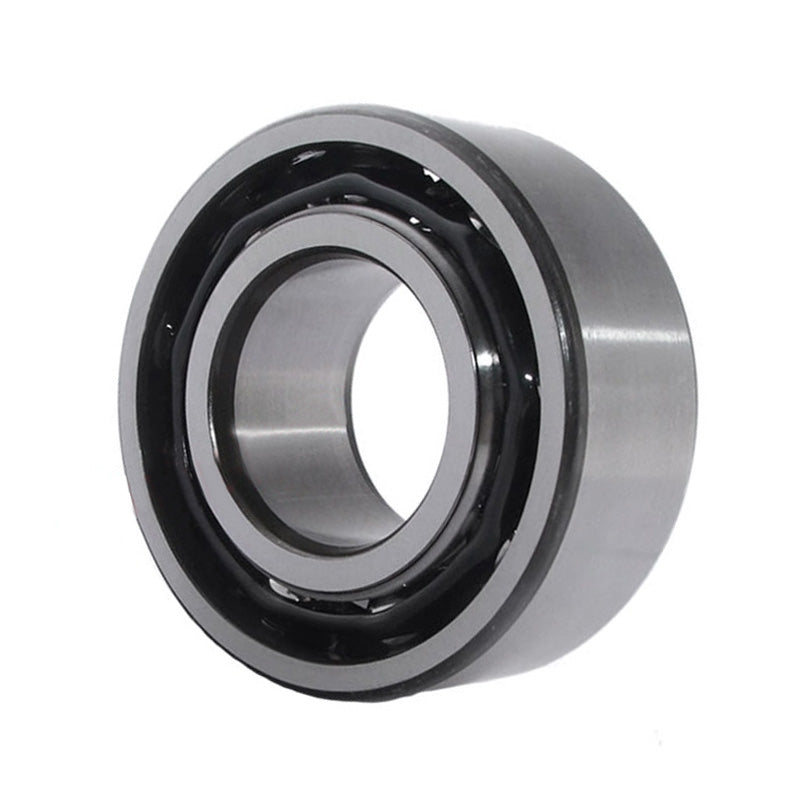

SKF 3303ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 17x47x22.2mm
SKF 3303ATN9C3 Double Row Angular Contact Ball Bearing with Polyamide Cage 17x47x22.2mm
Regular price
Rs. 6,251.16
Regular price
Sale price
Rs. 6,251.16
Taxes included.
Equivalent to: 5303
In stock
Price Break
10+
Rs. 5,563.53
19+
Rs. 5,250.97
29+
Rs. 5,188.46
39+
Rs. 5,125.95
49+
Rs. 5,063.44
74+
Rs. 5,000.93
99+
Rs. 4,688.37
199+
Rs. 4,625.86
249+
Rs. 4,563.35
499+
Rs. 4,500.84
999+
Rs. 4,375.81
Description
Description
|
SKF Open Type Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well. Benefits: Compact, rigid, accommodates tilting, radial and axial loads |
Equivalent: 5303
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 17mm
- Outside Diameter:
- 47mm
- Width:
- 22.2mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 17mm |
|---|---|
| D | 47mm |
| B | 22.2mm |
| Dynamic load Cr | 21.6 kN |
| Static load Cor | 12.7 kN |
| Fatigue load limit Pu | 0.54 kN |
| Reference speed | 14000 rpm |
| Limiting speed | 14000 rpm |
| Weight | 0.18 kg |
| d1 | 27.3mm |
| D1 | 38.8mm |
| r1r2 min | 1mm |
| a | 28mm |
| da min | 22.6mm |
| Da max | 41.4mm |
| ra max | 1mm |
