SKU: 32K1.5/201

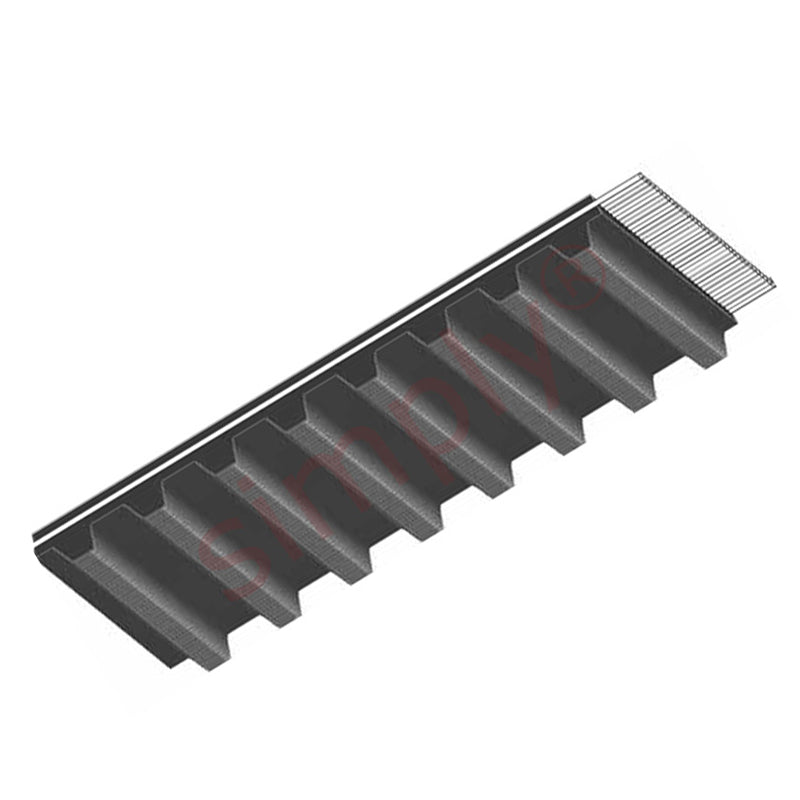

32K1.5/201 ContiTech Synchroflex Toothed Belt 32mm Wide 1.5mm Pitch 134 Teeth
In stock
Price Break
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 32mm
- Belt Length Approx:
- 201mm
- Number of Teeth:
- 134
Technical
| No Teeth | 134 |
|---|---|
| Width | 32mm |
| Tooth Pitch t | 1.5mm |
| Belt Length | 201mm |
| Belt Thickness h<sub>s</sub> | 1.2mm |
| Tooth Height h<sub>t</sub> | 0.6mm |
| Flank Angle | 70 deg |
| Tension member loadings | 403 Fadm(N) |
| Belt weight | 0.032kg/m |
