SKU: 32B-3-NO12-MB
Branded 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Branded 32B-3-NO12 BS Triplex Chain Single Cranked Cottered Link 2 inch Pitch
Regular price
Rs. 9,982.90
Regular price
Sale price
Rs. 9,982.90
Taxes included.
Equivalent to: 32B-3-OL
In stock
Price Break
10+
Rs. 8,884.78
19+
Rs. 8,385.64
29+
Rs. 8,285.81
39+
Rs. 8,185.98
49+
Rs. 8,086.15
74+
Rs. 7,986.32
99+
Rs. 7,487.18
199+
Rs. 7,387.35
249+
Rs. 7,287.52
499+
Rs. 7,187.69
999+
Rs. 6,988.03
Description
Description

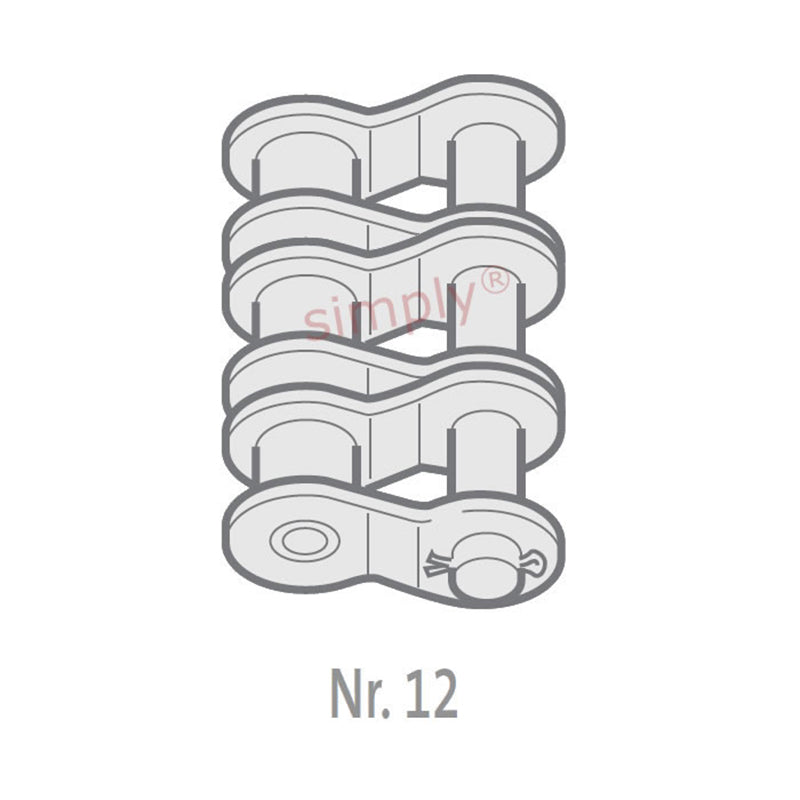

Branded OL / No. 12 European (BS) Triplex Connecting Link: A single link with cranked plates pressed onto a bush and roller assemble at the narrow end. A clearance fit connecting pin (No. 128) is fitted at the wide end and is secured by a split pin.
Equivalent: 32B-3-OL
- Brand / Quality:
- Major Brand - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H3) | 179.4mm |
| Connecting Link Extension max (J) | 14.4mm |
| ISO606 Tensile Strength min | 725000 N |
| Weight | 0.5kg/m |
