SKU: 32B-1-NO11-RENOLD
Renold 32B-1-NO11 BS Simplex Chain Cottered Connecting Link 2 inch Pitch
Renold 32B-1-NO11 BS Simplex Chain Cottered Connecting Link 2 inch Pitch
Regular price
Rs. 1,898.28
ex VAT
Regular price
Sale price
Rs. 1,898.28
ex VAT
In stock
Price Break
10+
Rs. 1,689.47
19+
Rs. 1,594.56
29+
Rs. 1,575.57
39+
Rs. 1,556.59
49+
Rs. 1,537.61
74+
Rs. 1,518.62
99+
Rs. 1,423.71
199+
Rs. 1,404.73
249+
Rs. 1,385.74
499+
Rs. 1,366.76
999+
Rs. 1,328.80
Couldn't load pickup availability
Description
Description

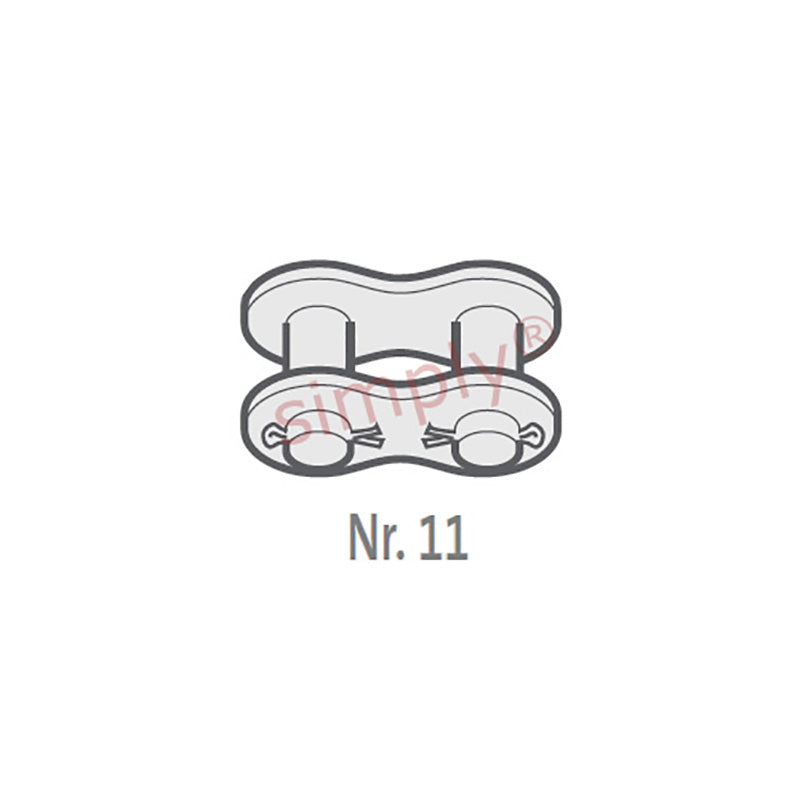

Branded COT / No. 11 European (BS) Simplex Connecting Link: A connecting link supplied with two connecting pins riveted into the outer plate. The outer plate is a clearance fit on the connecting pins and is secured in a position by a split pin through the projecting end of each connecting pin.
- Brand / Quality:
- Renold - High Quality
- Pitch:
- 50.8mm = 2 inch
Technical
Technical
| Pitch (A) | 2 inch |
|---|---|
| Pitch (A) | 50.8mm |
| Inside Width min (B) | 30.99mm |
| Roller Diameter max (C) | 29.21mm |
| Plate Height max (D) | 42.1mm |
| Plate Width Inner max (E) | 7.1mm |
| Plate Width Outer max (F) | 6.4mm |
| Pin Diameter max (G) | 17.81mm |
| Pin Length max (H1) | 66.2mm |
| Connecting Link Extension max (J) | 4.8mm |
| ISO606 Tensile Strength min | 250000 N |
| Weight | 0.16kg/m |
