SKU: 32320-TIM

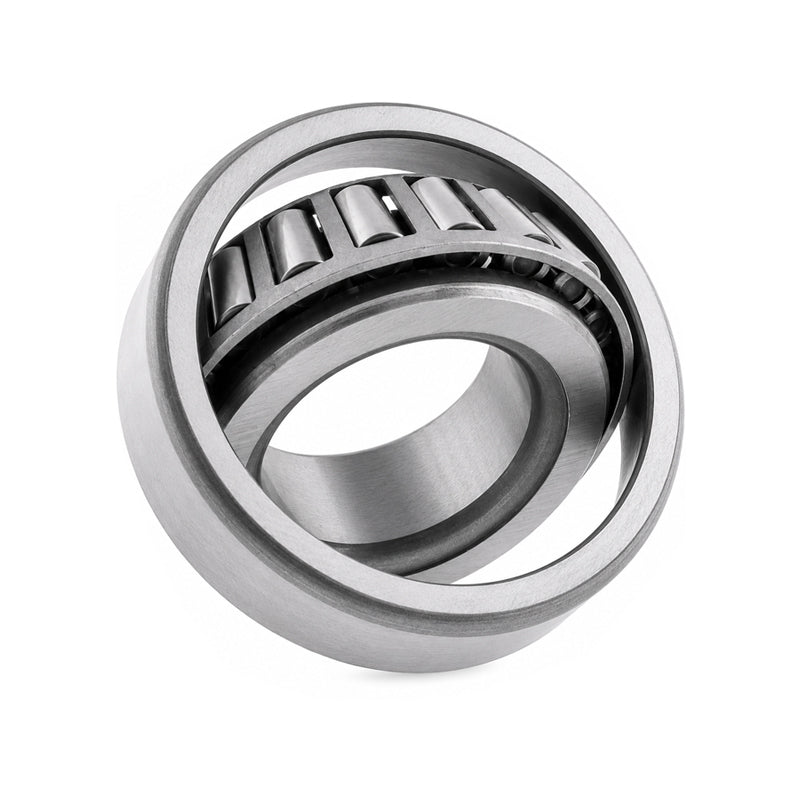

Timken 32320 Metric Taper Roller Bearing 100x215x77.5mm
Timken 32320 Metric Taper Roller Bearing 100x215x77.5mm
Regular price
Rs. 157,994.36
Regular price
Sale price
Rs. 157,994.36
Taxes included.
In stock
Price Break
10+
Rs. 140,614.98
19+
Rs. 132,715.26
29+
Rs. 131,135.32
39+
Rs. 129,555.38
49+
Rs. 127,975.43
74+
Rs. 126,395.49
99+
Rs. 118,495.77
199+
Rs. 116,915.83
249+
Rs. 115,335.88
499+
Rs. 113,755.94
999+
Rs. 110,596.05
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 77.5mm
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| T | 77.5mm |
| Dynamic load | 572 kN |
| Static load | 780 kN |
| Fatigue load limit Pu | 83 kN |
| Reference speed | 2200 rpm |
| Limiting speed | 3000 rpm |
| Mass | 12.5 kg |
| d1 | 151mm |
| B | 73mm |
| C | 60mm |
| r1r2 min | 4mm |
| r3r4 min | 3mm |
| a | 51mm |
| da max | 123mm |
| db min | 115mm |
| Da min | 177mm |
| Da max | 201mm |
| Db min | 200mm |
| Ca min | 8mm |
| Cb min | 17.5mm |
| ra max | 3mm |
| rb max | 2.5mm |
| e | 0.35 |
| Y | 1.7 |
| Y0 | 0.9 |
