SKU: 32314-TIM

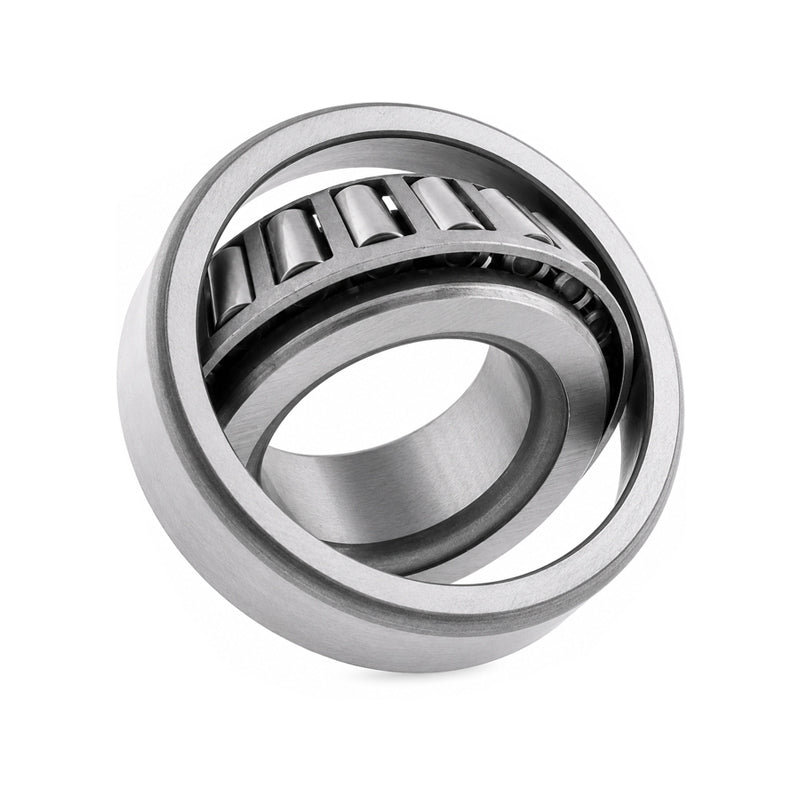

Timken 32314 Metric Taper Roller Bearing 70x150x54mm
Timken 32314 Metric Taper Roller Bearing 70x150x54mm
Regular price
Rs. 33,817.44
Regular price
Sale price
Rs. 33,817.44
Taxes included.
In stock
Price Break
10+
Rs. 30,097.52
19+
Rs. 28,406.65
29+
Rs. 28,068.48
39+
Rs. 27,730.30
49+
Rs. 27,392.13
74+
Rs. 27,053.95
99+
Rs. 25,363.08
199+
Rs. 25,024.91
249+
Rs. 24,686.73
499+
Rs. 24,348.56
999+
Rs. 23,672.21
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 150mm
- Width:
- 54mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 150mm |
| T | 54mm |
| Dynamic load | 297 kN |
| Static load | 380 kN |
| Fatigue load limit Pu | 45 kN |
| Reference speed | 3200 rpm |
| Limiting speed | 4500 rpm |
| Mass | 4.3 kg |
| d1 | 106mm |
| B | 51mm |
| C | 42mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 36mm |
| da max | 86mm |
| db min | 82mm |
| Da min | 125mm |
| Da max | 138mm |
| Db min | 140mm |
| Ca min | 6mm |
| Cb min | 12mm |
| ra max | 2.5mm |
| rb max | 2mm |
| e | 0.35 |
| Y | 1.7 |
| Y0 | 0.9 |
