• 32052RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 25x52x20.6mm
1 1

SKU: 3205-2RS-EU

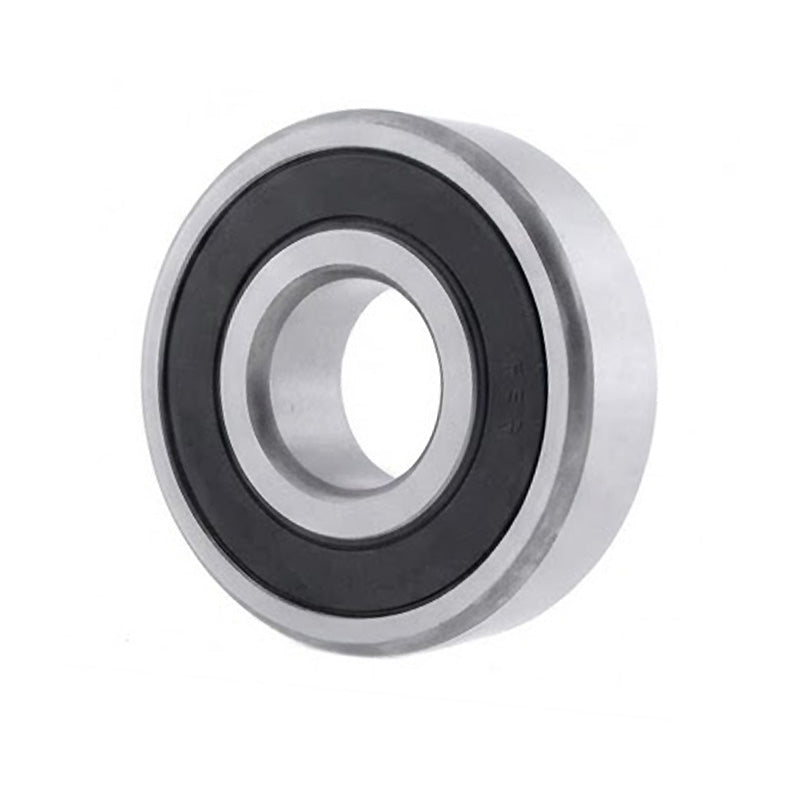

32052RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 25x52x20.6mm

32052RS Budget Rubber Sealed Double Row Angular Contact Ball Bearing 25x52x20.6mm
Rs. 2,287.63 ex VAT
Rs. 2,287.63 ex VAT
Sale Sold out

Equivalent to: 32052RS 3205.2RS 32052RSH 3205.2RSH 32052RS1 3205.2RS1 32052RSR 3205.2RSR 3205RS 3205.RS

In stock

Price Break
10+ Rs. 2,035.99
19+ Rs. 1,921.61
29+ Rs. 1,898.73
39+ Rs. 1,875.86
49+ Rs. 1,852.98
74+ Rs. 1,830.10
99+ Rs. 1,715.72
199+ Rs. 1,692.85
249+ Rs. 1,669.97
499+ Rs. 1,647.09
999+ Rs. 1,601.34
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Rubber Sealed Double Row Angular Contact Ball Bearings: Correspond to the design of two single row angular contact ball bearings side by side but occupying less space. They can accommodate radial loads as well as axial loads acting in both directions. They provide a rigid bearing arrangement and accommodate tilting moments well
Benefits: Compact, rigid, accommodates tilting, radial and axial loads
Note: Due to the differences amongst the standard specifications of different brands, this bearing may come with a polyamide or steel cage. Please contact our Sales Support team if you need to check the specification before purchase.
Equivalent: 32052RS 3205.2RS 32052RSH 3205.2RSH 32052RS1 3205.2RS1 32052RSR 3205.2RSR 3205RS 3205.RS
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
25mm
Outside Diameter:
52mm
Width:
20.6mm
Seals / Shields:
Rubber Sealed
Clearance:
* Standard
Technical
d 25mm
D 52mm
B 20.6mm
Dynamic load C 21.6 kN
Static load Co 14.3 kN
Fatigue load limit Pu 0.6 kN
Reference speed 8500 rpm
Weight 0.18 kg
d1 32.7mm
D1 45.9mm
r1r2 min 1mm
a 30mm
da min 30.6mm
da max 32.5mm
Da max 46.4mm
ra max 1mm
