SKU: 32022X/Q-SKF

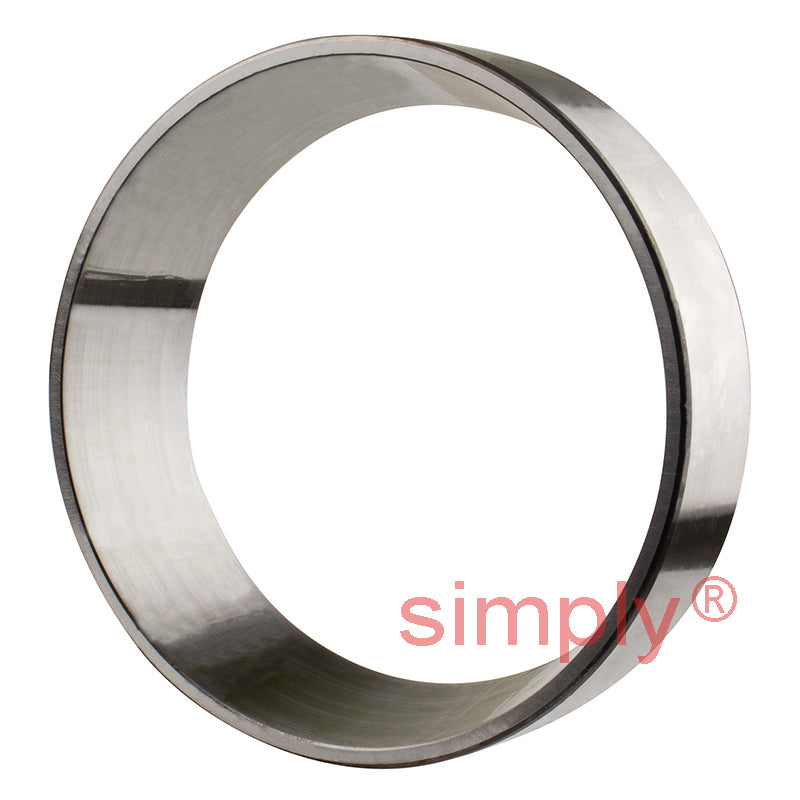

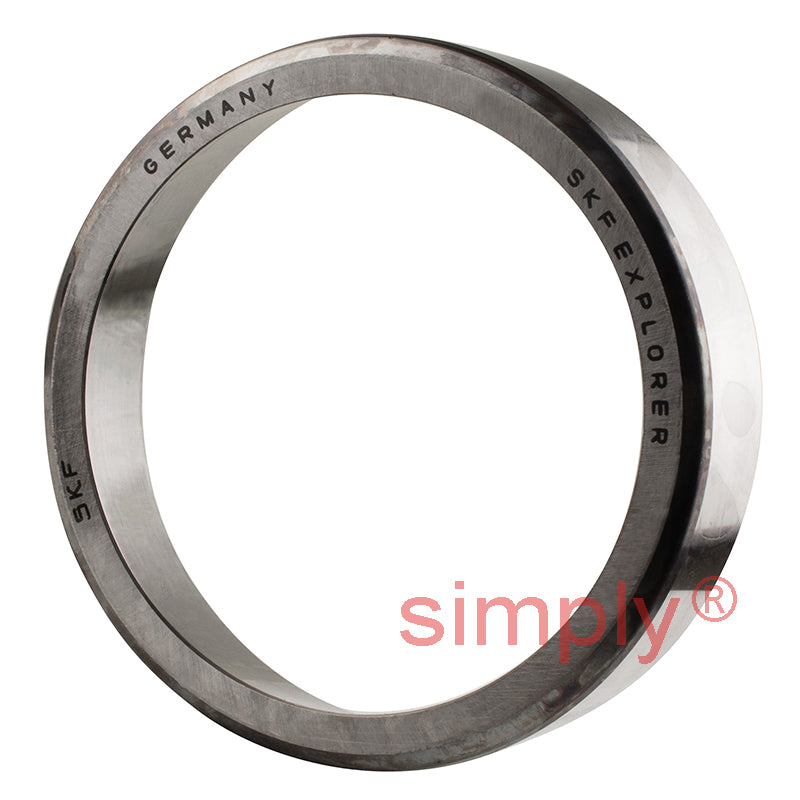

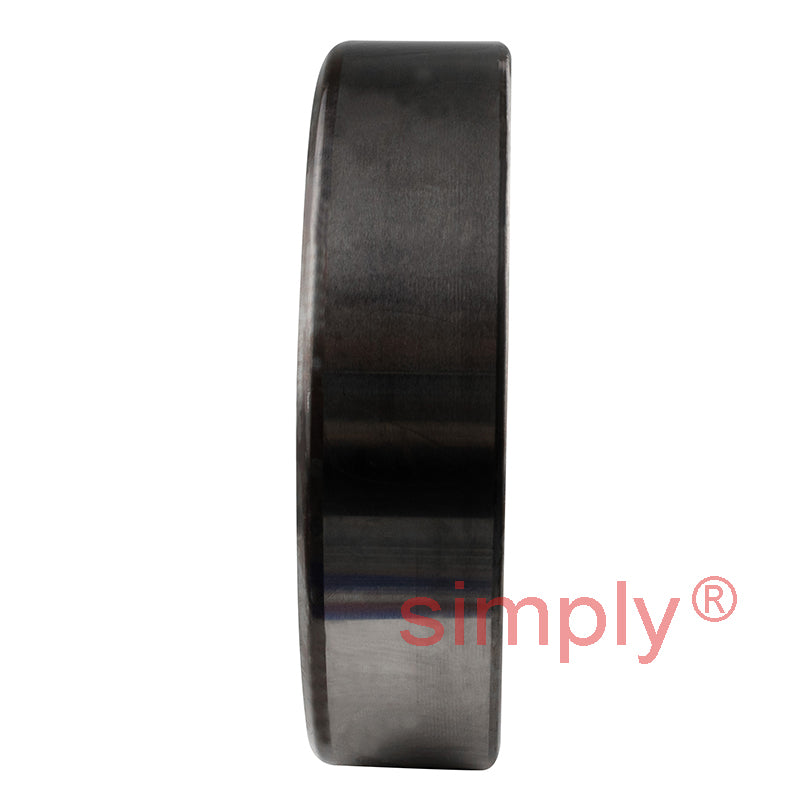

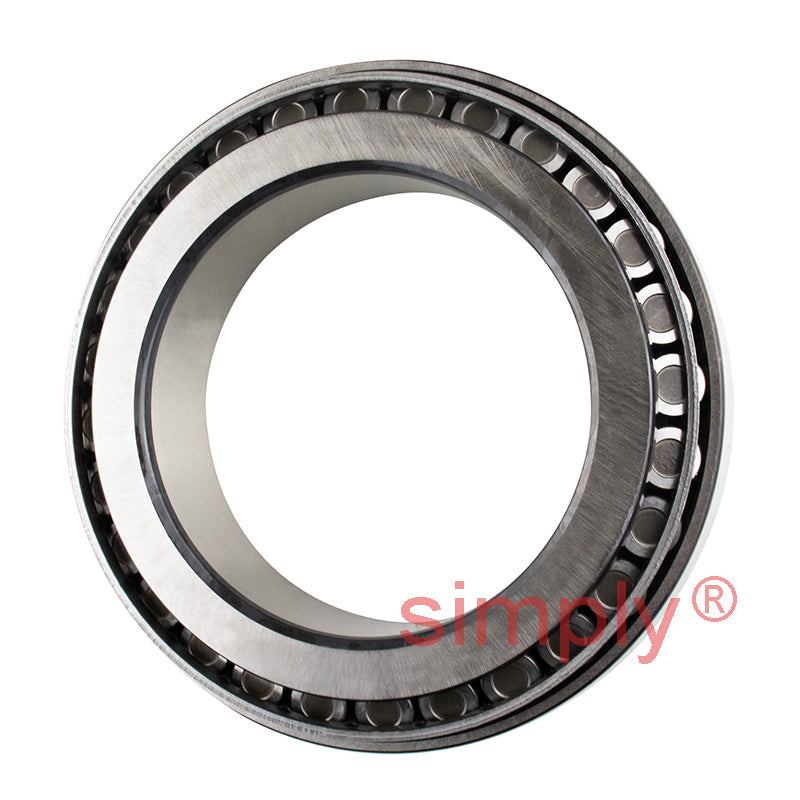

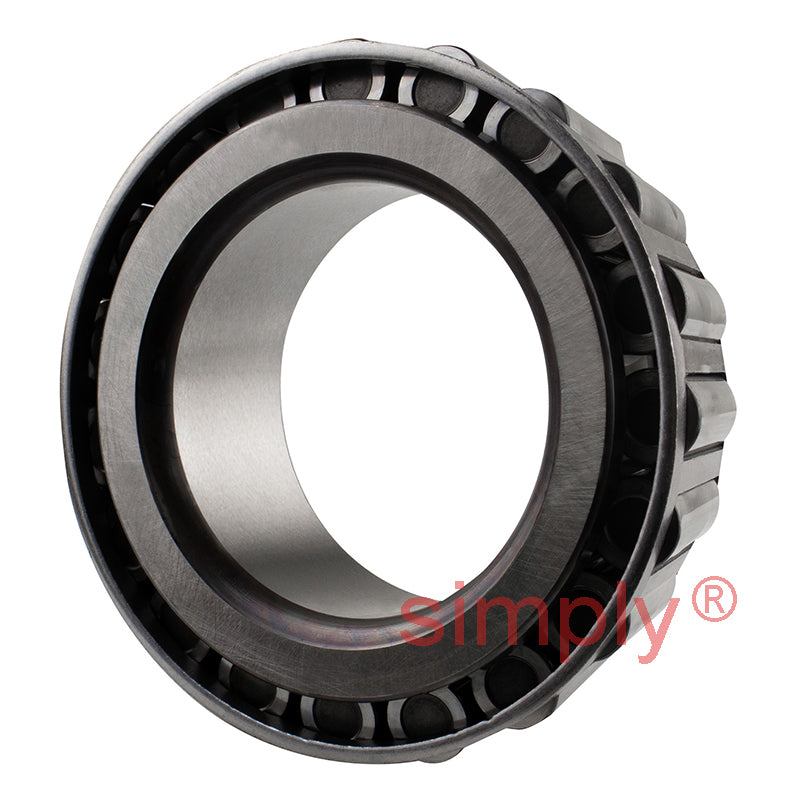

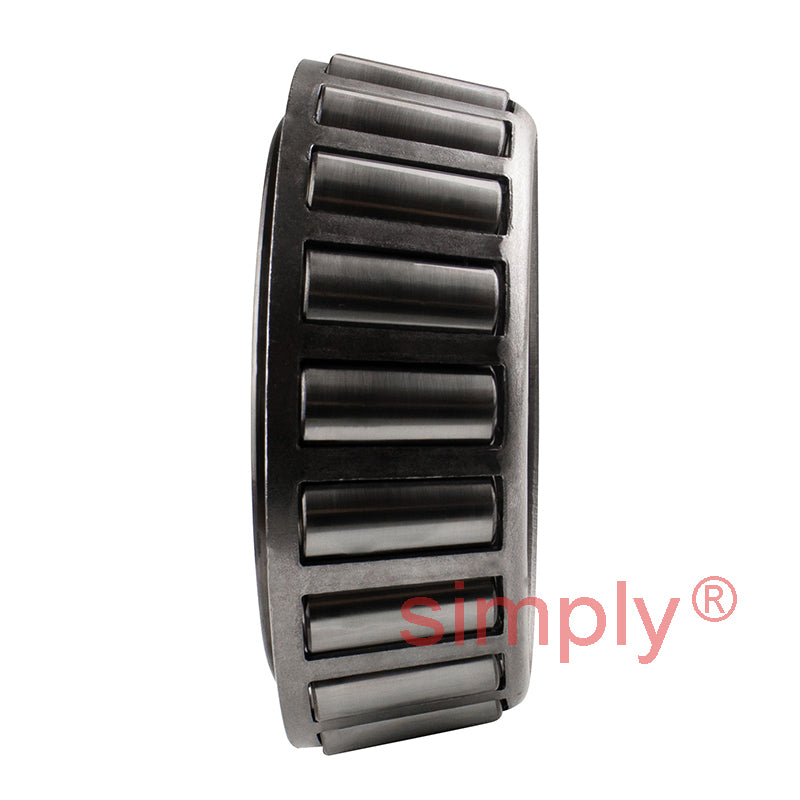

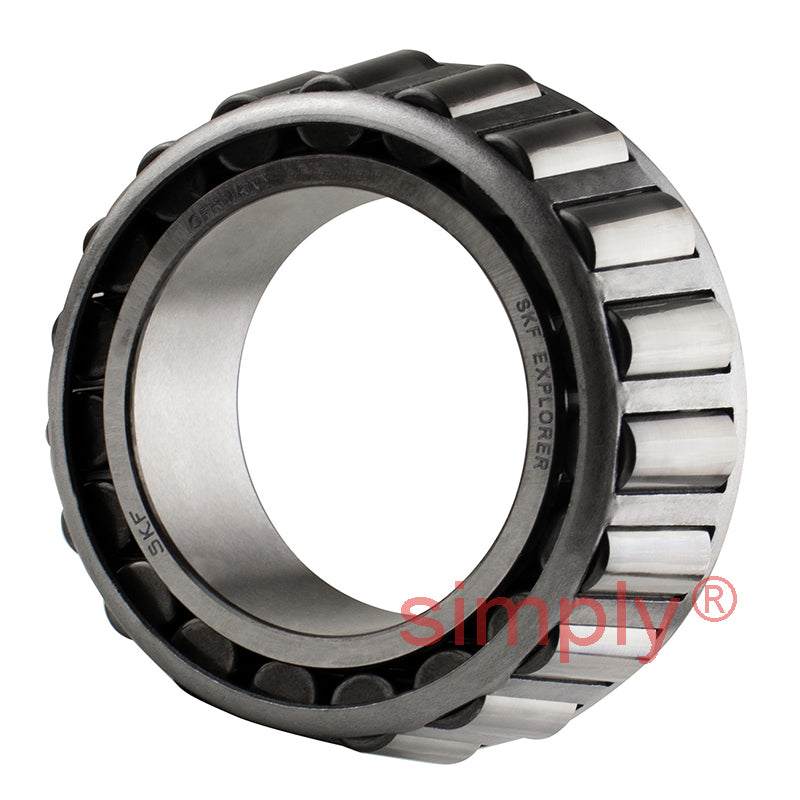

SKF 32022XQ Metric Single Row Taper Roller Bearing 110x170x38mm
SKF 32022XQ Metric Single Row Taper Roller Bearing 110x170x38mm
Regular price
Rs. 13,880.86
ex VAT
Regular price
Sale price
Rs. 13,880.86
ex VAT
In stock
Price Break
10+
Rs. 12,353.97
19+
Rs. 11,659.92
29+
Rs. 11,521.11
39+
Rs. 11,382.31
49+
Rs. 11,243.50
74+
Rs. 11,104.69
99+
Rs. 10,410.65
199+
Rs. 10,271.84
249+
Rs. 10,133.03
499+
Rs. 9,994.22
999+
Rs. 9,716.60
Couldn't load pickup availability
Description
Description
|
SKF Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 110mm
- Outside Diameter:
- 170mm
- Width:
- 38mm
- Seals / Shields:
- None
Technical
Technical
| d | 110mm |
|---|---|
| D | 170mm |
| T | 38mm |
| Dynamic load | 233 kN |
| Static load | 390 kN |
| Fatigue load limit Pu | 42.5 kN |
| Reference speed | 2600 rpm |
| Limiting speed | 3600 rpm |
| Weight | 3.05 kg |
| d1 | 140mm |
| B | 38mm |
| C | 29mm |
| r1r2 min | 2.5mm |
| r3r4 min | 2mm |
| a | 36mm |
| da max | 123mm |
| db min | 121mm |
| Da min | 152mm |
| Da max | 160mm |
| Db min | 163mm |
| Ca min | 7mm |
| Cb min | 9mm |
| ra max | 2mm |
| rb max | 2mm |
| Calculation factor e | 0.43 |
| Calculation factor Y | 1.4 |
| Calculation factor Y0 | 0.8 |
