SKU: 311-SKF

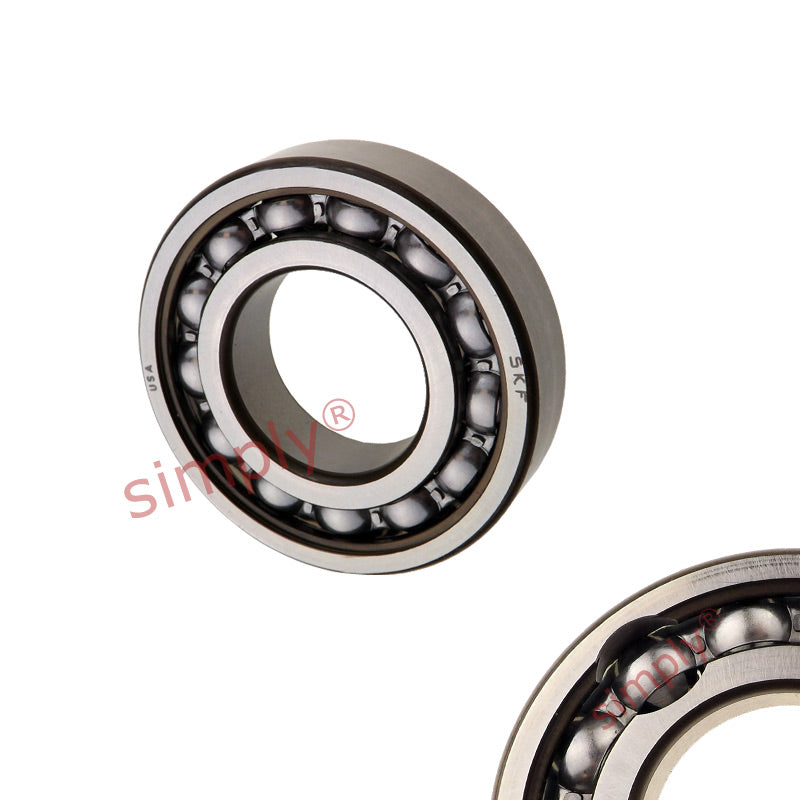

SKF 311 Open Type Filling Slot Ball Bearing 55x120x29mm
SKF 311 Open Type Filling Slot Ball Bearing 55x120x29mm
Regular price
Rs. 20,567.50
Regular price
Sale price
Rs. 20,567.50
Taxes included.
In stock
Price Break
10+
Rs. 18,305.08
19+
Rs. 17,276.70
29+
Rs. 17,071.03
39+
Rs. 16,865.35
49+
Rs. 16,659.68
74+
Rs. 16,454.00
99+
Rs. 15,425.63
199+
Rs. 15,219.95
249+
Rs. 15,014.28
499+
Rs. 14,808.60
999+
Rs. 14,397.25
Description
Description
|
SKF Filling Slot Ball Bearings: Are special variants of deep groove ball bearings which have filling slots to allow at point of manufacture more and larger balls to be used in the assembly. Filling slot bearings have a higher radial load carrying capacity than bearings without slots but their axial load carrying capacity is reduced. Their speed rating is lower than bearings without slots. Benefits: Tolerates high radial loads |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 120mm
- Width:
- 29mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

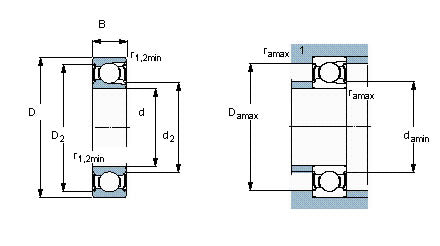

| d | 55mm |
|---|---|
| D | 120mm |
| B | 29mm |
| Dynamic load C | 79.2 kN |
| Static load Co | 67 kN |
| Fatigue load limit Pu | 2.85 kN |
| Reference speed | 10000 rpm |
| Limiting speed | 6700 rpm |
| Weight | 1.5 kg |
| d1 | 74mm |
| D2 | 104mm |
| r1r2 min | 2mm |
| da min | 64mm |
| Da max | 111mm |
| ra max | 2mm |
