• NTN 30316U Tapered Roller Bearing Cup and Cone Set 80x170x42.5mm
1 1

SKU: 30316U-NTN

NTN 30316U Tapered Roller Bearing Cup and Cone Set 80x170x42.5mm

NTN 30316U Tapered Roller Bearing Cup and Cone Set 80x170x42.5mm
Rs. 22,882.07
Rs. 22,882.07
Sale Sold out
Taxes included.

In stock

Price Break
10+ Rs. 20,365.04
19+ Rs. 19,220.94
29+ Rs. 18,992.12
39+ Rs. 18,763.30
49+ Rs. 18,534.48
74+ Rs. 18,305.66
99+ Rs. 17,161.55
199+ Rs. 16,932.73
249+ Rs. 16,703.91
499+ Rs. 16,475.09
999+ Rs. 16,017.45
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

NTN Metric Taper Roller Bearings: Designed to carry heavy radial loads and single direction thrust loads. Supplied as a two-part set consisting of the cone inner part where the rollers and cage are located (fits on the shaft) and the outer cup part (fits in the housing).
NTN Europe is a world-renowned leader in the bearing manufacturing sector and their tapered roller bearings are no exception.
Manufactured to exacting standards you can be assured of the quality of NTN products.
Benefits: NTN quality assured, Socially and environmentally responsible manufacturer.

Brand / Quality:
NTN - High Quality
Inside Diameter:
80mm
Outside Diameter:
170mm
Width:
42.5mm
Style:
Taper Roller Bearing
Technical

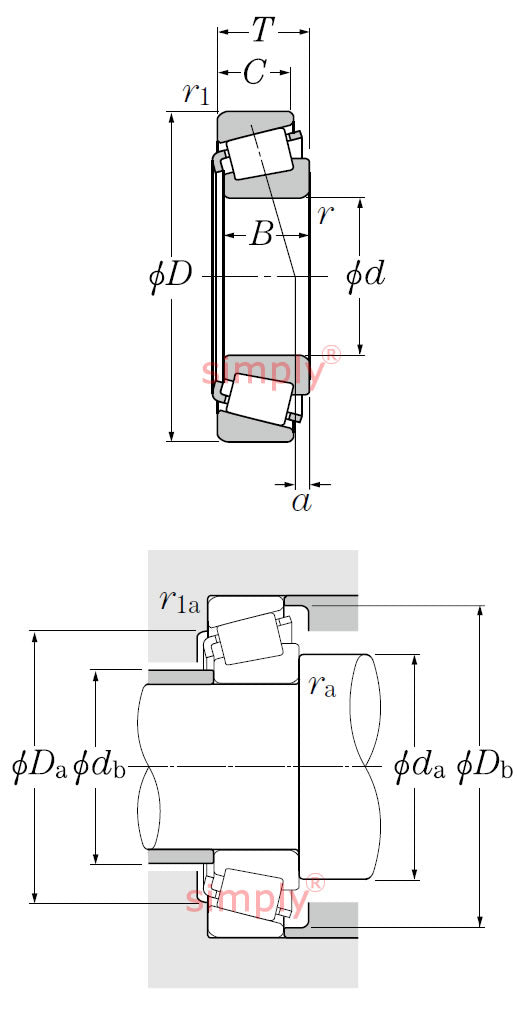

--- Bearing dimensions
d 80mm
D 170mm
T 42.5mm
B 39mm
C 33mm
r<sub>s</sub> min 3mm
r<sub>ls</sub> min 2.5mm
--- Speeds and loads
Dynamic load C<sub>r</sub> 325kN
Static load C<sub>or</sub> 350kN
Fatigue Load limit C<sub>u</sub> 39.5kN
Allowable Speed in grease 2300rpm
Allowable Speed in oil 3000rpm
--- Abutment dimensions
ISO Dimension series 2GB
d<sub>a</sub> min 94mm
d<sub>b</sub> max 101.5mm
D<sub>a</sub> max 158mm
D<sub>a</sub> min 145mm
D<sub>b</sub> min 160mm
S<sub>a</sub> min 4mm
S<sub>b</sub> min 9.5mm
r<sub>as</sub> max 2.5mm
r<sub>1as</sub> max 2mm
Load center a 34mm
Constant e 0.35mm
Y<sub>2</sub> 1.74mm
Y<sub>0</sub> 0.96mm
Weight 4.41kg
