SKU: 30316-TIM

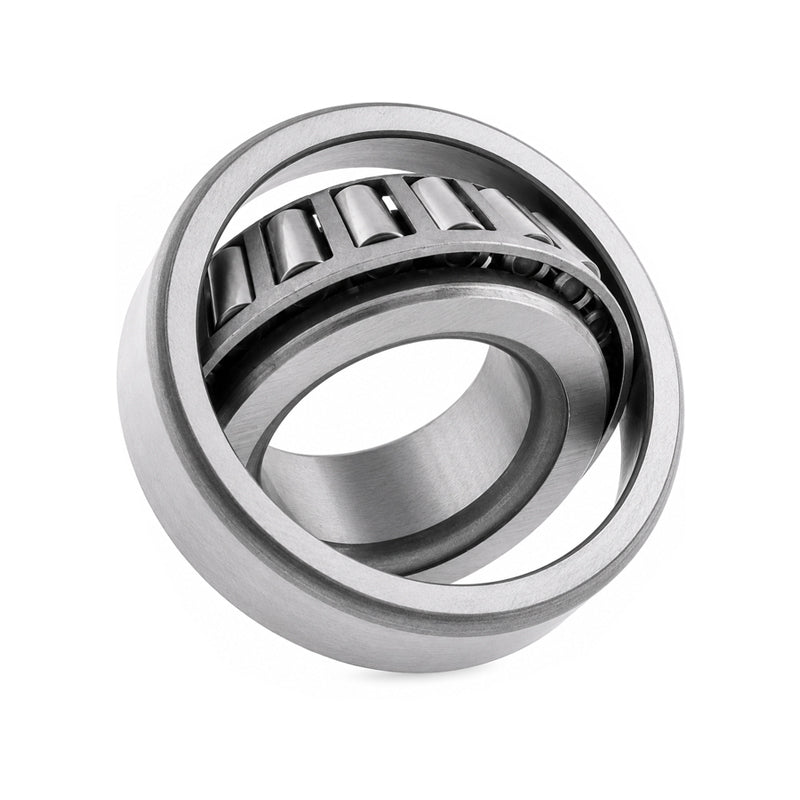

Timken 30316 Metric Taper Roller Bearing 80x170x42.5mm
Timken 30316 Metric Taper Roller Bearing 80x170x42.5mm
Regular price
Rs. 37,303.39
Regular price
Sale price
Rs. 37,303.39
Taxes included.
In stock
Price Break
10+
Rs. 33,200.02
19+
Rs. 31,334.85
29+
Rs. 30,961.81
39+
Rs. 30,588.78
49+
Rs. 30,215.75
74+
Rs. 29,842.71
99+
Rs. 27,977.54
199+
Rs. 27,604.51
249+
Rs. 27,231.47
499+
Rs. 26,858.44
999+
Rs. 26,112.37
Share this product
Description
Description
|
Metric Taper Roller Bearings: These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer). Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load |
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 80mm
- Outside Diameter:
- 170mm
- Width:
- 42.5mm
Technical
Technical
| d | 80mm |
|---|---|
| D | 170mm |
| T | 42.5mm |
| Dynamic load | 270 kN |
| Static load | 320 kN |
| Fatigue load limit Pu | 38 kN |
| Reference speed | 3000 rpm |
| Limiting speed | 4300 rpm |
| Mass | 4.1 kg |
| d1 | 120mm |
| B | 39mm |
| C | 33mm |
| r1r2 min | 3mm |
| r3r4 min | 2.5mm |
| a | 33mm |
| da max | 102mm |
| db min | 92mm |
| Da min | 148mm |
| Da max | 158mm |
| Db min | 159mm |
| Ca min | 5mm |
| Cb min | 9.5mm |
| ra max | 2.5mm |
| rb max | 2mm |
| e | 0.35 |
| Y | 1.7 |
| Y0 | 0.9 |
