SKU: 29456E-SKF

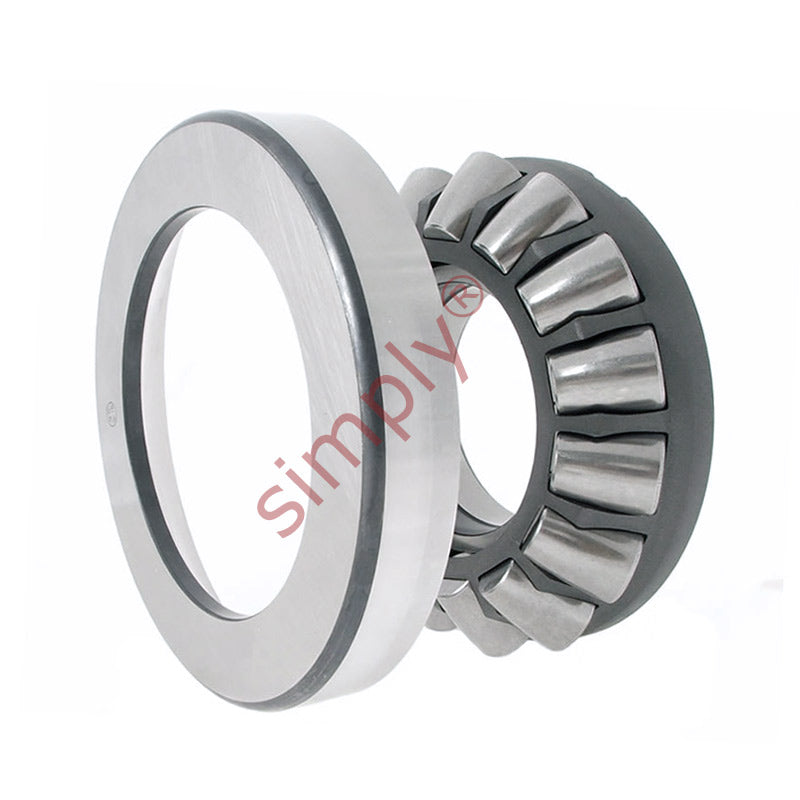

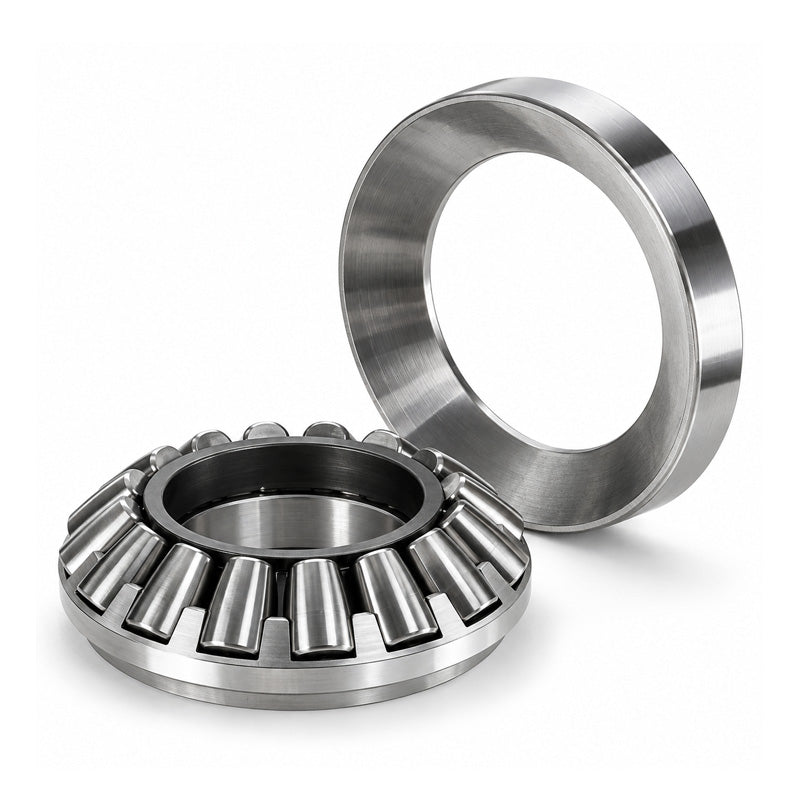

SKF 29456E Spherical Roller Thrust Bearing 280x520x145mm
SKF 29456E Spherical Roller Thrust Bearing 280x520x145mm
Regular price
Rs. 1,224,266.13
ex VAT
Regular price
Sale price
Rs. 1,224,266.13
ex VAT
In stock
Price Break
2+
Rs. 1,163,052.82
5+
Rs. 1,101,839.52
10+
Rs. 1,040,626.21
15+
Rs. 979,412.90
20+
Rs. 954,927.58
30+
Rs. 930,442.26
50+
Rs. 808,015.65
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 280mm
- Outside Diameter:
- 520mm
- Width:
- 145mm
Technical
Technical
| d | 280mm |
|---|---|
| D | 520mm |
| H | 145mm |
| Dynamic load C | 4900 kN |
| Static load Co | 15300 kN |
| Fatigue load limit Pu | 1320 kN |
| Minimum load factor A | 22 |
| Reference speed | 670 rpm |
| Limiting speed | 1200 rpm |
| Weight | 135 kg |
| d1 | 464.3mm |
| D1 | 372mm |
| B | 95mm |
| B1 | 129.9mm |
| C | 70mm |
| s | 166mm |
| r1r2 min | 6mm |
| da min | 395mm |
| db1 max | 300mm |
| db2 max | 320mm |
| Da max | 446mm |
| ra max | 5mm |
