SKU: 29418E-SKF

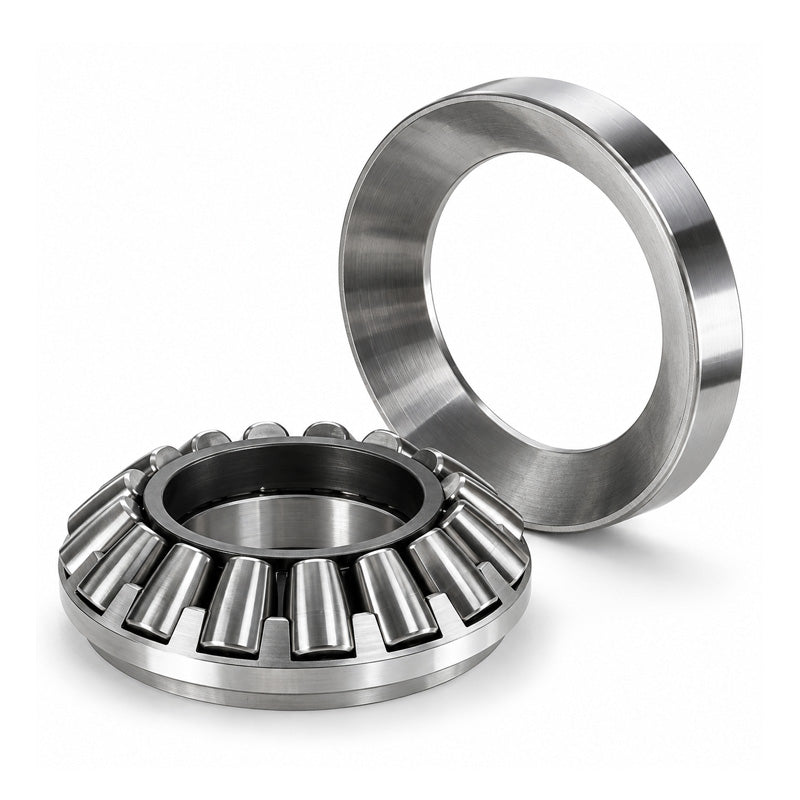

SKF 29418E Spherical Roller Thrust Bearing 90x190x60mm
SKF 29418E Spherical Roller Thrust Bearing 90x190x60mm
Regular price
Rs. 94,401.49
ex VAT
Regular price
Sale price
Rs. 94,401.49
ex VAT
In stock
Price Break
10+
Rs. 84,017.33
19+
Rs. 79,297.25
29+
Rs. 78,353.24
39+
Rs. 77,409.22
49+
Rs. 76,465.21
74+
Rs. 75,521.19
99+
Rs. 70,801.12
199+
Rs. 69,857.10
249+
Rs. 68,913.09
499+
Rs. 67,969.07
999+
Rs. 66,081.04
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 60mm
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| H | 60mm |
| Dynamic load C | 815 kN |
| Static load Co | 2000 kN |
| Fatigue load limit Pu | 232 kN |
| Minimum load factor A | 0.38 |
| Reference speed | 1900 rpm |
| Limiting speed | 3400 rpm |
| Weight | 7.75 kg |
| d1 | 164.6mm |
| D1 | 127.5mm |
| B | 39mm |
| B1 | 54mm |
| C | 28.5mm |
| s | 56mm |
| r1r2 min | 2.1mm |
| da min | 135mm |
| db1 max | 99mm |
| db2 max | 99mm |
| Da max | 158mm |
| ra max | 2mm |
