SKU: 29364E-SKF

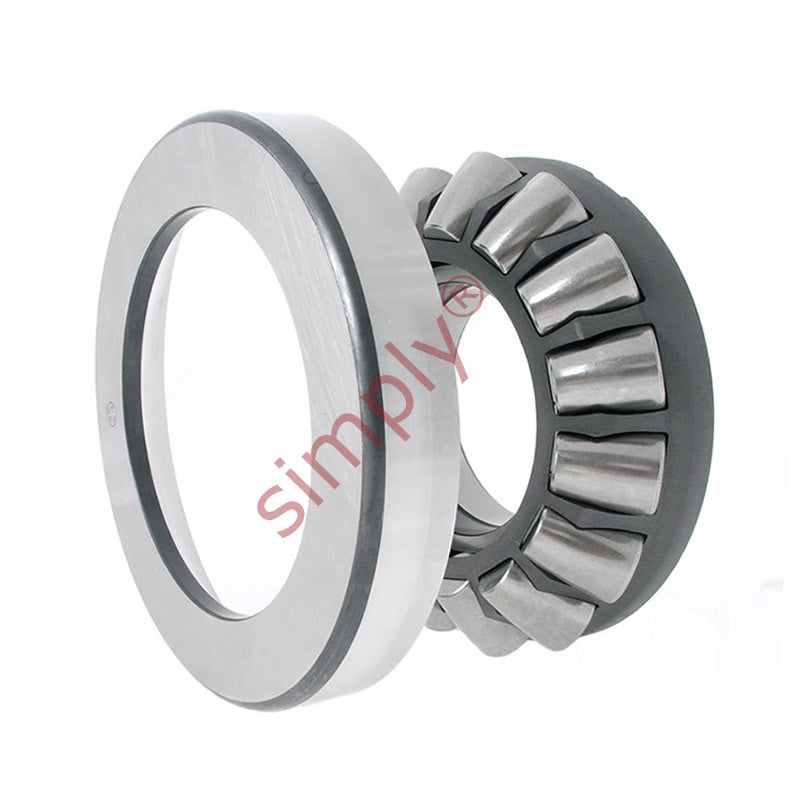

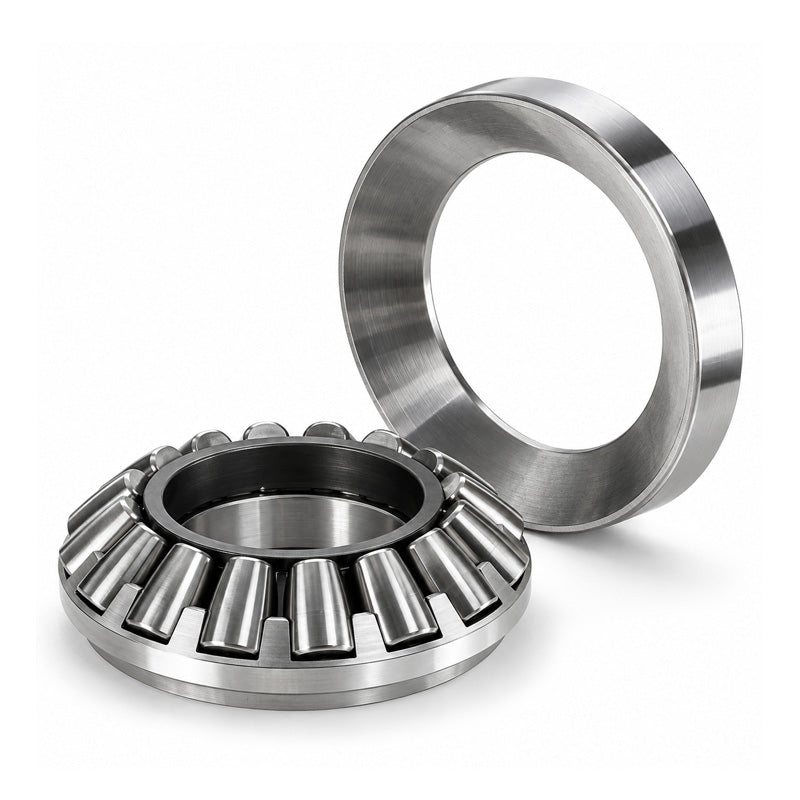

SKF 29364E Spherical Roller Thrust Bearing 320x500x109mm
SKF 29364E Spherical Roller Thrust Bearing 320x500x109mm
Regular price
Rs. 1,092,784.54
ex VAT
Regular price
Sale price
Rs. 1,092,784.54
ex VAT
In stock
Price Break
2+
Rs. 1,038,145.31
5+
Rs. 983,506.09
10+
Rs. 928,866.86
15+
Rs. 874,227.63
20+
Rs. 852,371.94
30+
Rs. 830,516.25
50+
Rs. 721,237.80
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 320mm
- Outside Diameter:
- 500mm
- Width:
- 109mm
Technical
Technical
| d | 320mm |
|---|---|
| D | 500mm |
| H | 109mm |
| Dynamic load C | 3350 kN |
| Static load Co | 11200 kN |
| Fatigue load limit Pu | 1000 kN |
| Minimum load factor A | 12 |
| Reference speed | 750 rpm |
| Limiting speed | 1200 rpm |
| Weight | 78 kg |
| d1 | 454.5mm |
| D1 | 391mm |
| B | 68mm |
| B1 | 97.8mm |
| C | 53mm |
| s | 180mm |
| r1r2 min | 5mm |
| da min | 405mm |
| db1 max | 332mm |
| db2 max | 347mm |
| Da max | 442mm |
| ra max | 4mm |
