SKU: 29334E-SKF

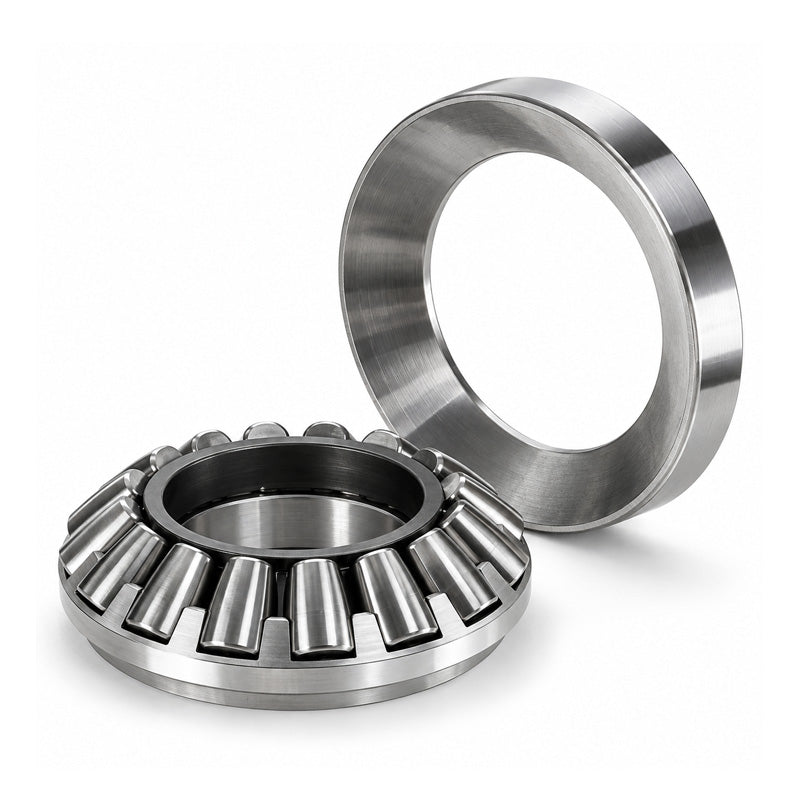

SKF 29334E Spherical Roller Thrust Bearing 170x280x67mm
SKF 29334E Spherical Roller Thrust Bearing 170x280x67mm
Regular price
Rs. 190,489.81
ex VAT
Regular price
Sale price
Rs. 190,489.81
ex VAT
In stock
Price Break
10+
Rs. 169,535.93
19+
Rs. 160,011.44
29+
Rs. 158,106.54
39+
Rs. 156,201.64
49+
Rs. 154,296.75
74+
Rs. 152,391.85
99+
Rs. 142,867.36
199+
Rs. 140,962.46
249+
Rs. 139,057.56
499+
Rs. 137,152.66
999+
Rs. 133,342.87
Couldn't load pickup availability
Description
Description
|
SKF Spherical Roller Thrust Bearings: These bearings are thrust bearings that have self aligning ability as as such will tolerate misalignment and deal with both axial and radial loads simultaneously. Benefits: High radial and axial loads, misalignment |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 170mm
- Outside Diameter:
- 280mm
- Width:
- 67mm
Technical
Technical
| d | 170mm |
|---|---|
| D | 280mm |
| H | 67mm |
| Dynamic load C | 1200 kN |
| Static load Co | 3550 kN |
| Fatigue load limit Pu | 365 kN |
| Minimum load factor A | 1.2 |
| Reference speed | 1300 rpm |
| Limiting speed | 2200 rpm |
| Weight | 15 kg |
| d1 | 251.2mm |
| D1 | 215mm |
| B | 42.2mm |
| B1 | 61mm |
| C | 30.5mm |
| s | 96mm |
| r1r2 min | 3mm |
| da min | 220mm |
| db1 max | 178mm |
| db2 max | 188mm |
| Da max | 245mm |
| ra max | 2.5mm |
