SKU: 25T10/980DL

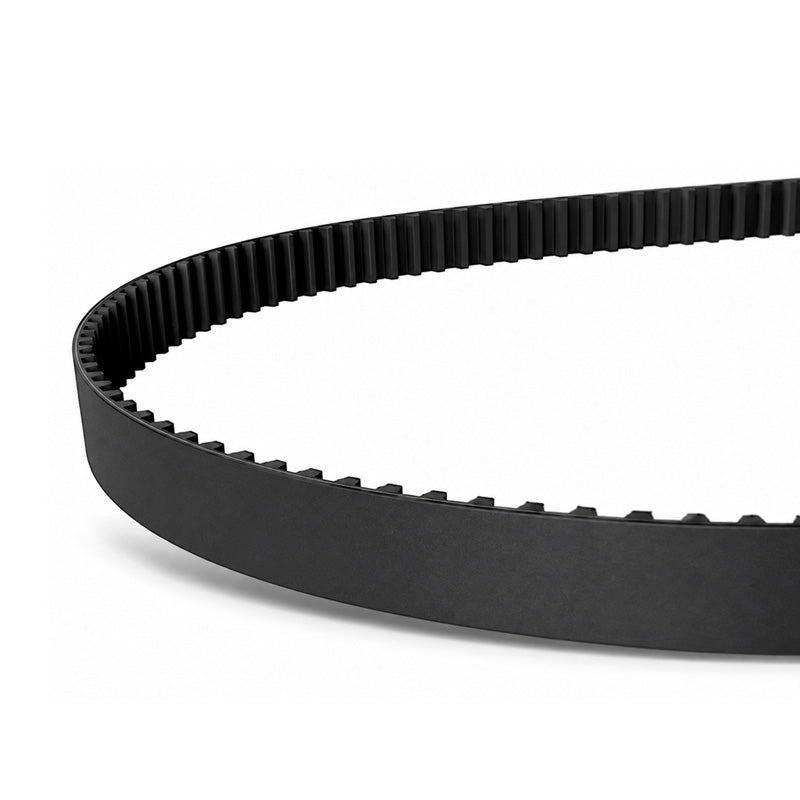

25T10/980DL ContiTech Synchroflex Toothed Belt 25mm Wide 10mm Pitch 98 Teeth
In stock
Price Break
Description
Synchronous Drive Belts: Power transmission belts have become a valuable element of synchronous transmission throughout the entire field of drive technology. They enable purpose-made solutions to be realized effectively and economically.
Thanks to their high flexibility synchronous drive belts enable low-cost design, even with difficult drive system requirements such as high transmission ratios, high belt speeds, small pulley diameters and back tensioning rollers.
Benefits: Synchronised drive, Outstanding resistance to fatigue and deformation, as well as a good resistance to environmental influences, temperature extremes and ageing, are all factors which give the user high service reliability and freedom from maintenance.
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 25mm
- Belt Length Approx:
- 980mm
- Number of Teeth:
- 98
Technical
| No Teeth | 98 |
|---|---|
| Width | 25mm |
| Tooth Pitch t | 10mm |
| Belt Length | 980mm |
| Belt Thickness h<sub>s</sub> | 7mm |
| Tooth Height h<sub>t</sub> | 2.5mm |
| Flank Angle | 40 deg |
| Tension member loadings | 2000 Fadm(N) |
| Belt weight | 0.143kg/m |
